Restraint systemsDeployment with module fitted to vehicle

Deployment with module fitted to vehicle

These guidelines are written to aid authorised personnel to carry out the safe disposal of the airbag module when fitted to the vehicle.

WARNING:

Only use the Rover approved deployment equipment. Deploy airbag modules in a well ventilated designated area. Ensure airbag module is not damaged or ruptured before deploying.

Driver’s airbag module

  1. Carry out deployment tool self test.
Driver’s airbag module – Carry out deployment tool self test.

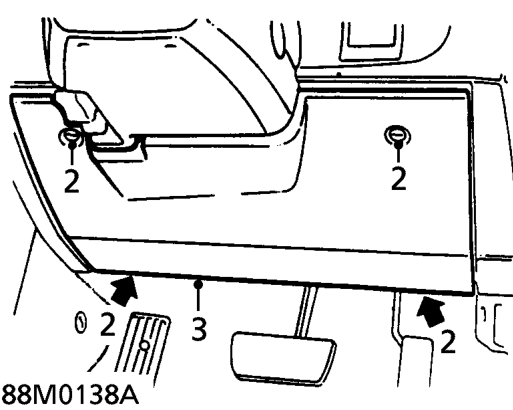

  1. Release 4 turnbuckles securing fusebox cover to fascia.
  2. Remove fusebox cover.
Driver’s airbag module – Remove fusebox cover.

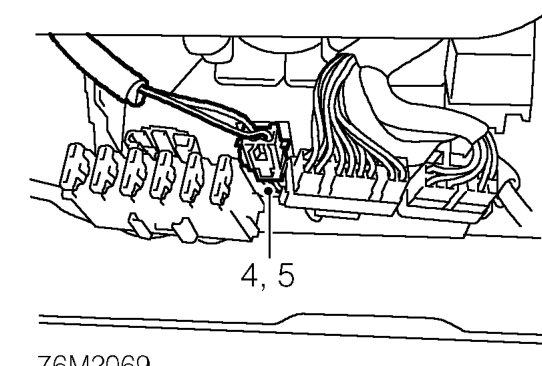

  1. Release airbag harness to column harness connector from bracket.
  2. Disconnect airbag harness connector SRS column harness.
Driver’s airbag module – Disconnect airbag harness connector SRS column harness.

WARNING: Ensure tool SMD 4082/1 is not connected to battery.

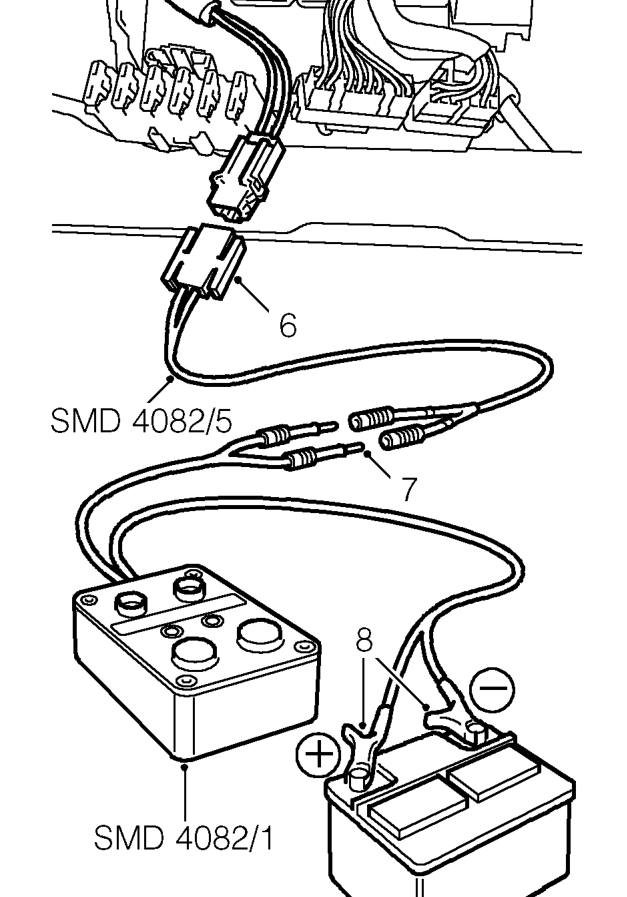

  1. Connect flylead SMD 4082/5 to airbag harness connector.
  2. Connect flylead SMD 4082/5 to tool SMD 4082/1.

WARNING: Ensure airbag module is secure within steering wheel.

  1. Connect tool SMD 4082/1 to battery.

WARNING: Ensure all personnel are standing at least 15 metres away from vehicle.
