Rover 800 Workshop Manual (1996-1999)21 · Restraint systems
21 · Body & interior

SRS harness

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Precautions › SRS harness
Restraint systemsSRS harness

SRS HARNESS

Srs harness

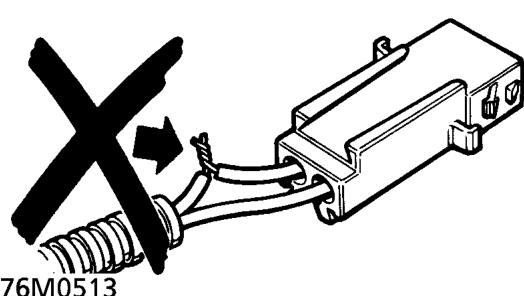

  1. Never attempt to modify, splice or repair the SRS harness. Never install electronic equipment such as; a mobile telephone, two-way radio or in-car entertainment system in such a way that it interferes electrically with the SRS harness.

NOTE: The SRS harness can be identified by a special yellow outer protective covering.

Srs harness – Never attempt to modify, splice or repair the SRS harness. Never install electronic equipm

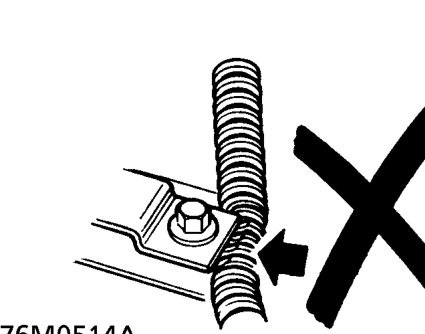

  1. Make sure the SRS harness is installed correctly and not pinched or trapped.
Srs harness – Make sure the SRS harness is installed correctly and not pinched or trapped.

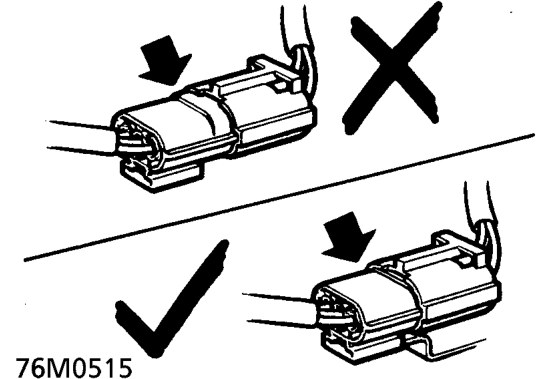

  1. Ensure all SRS harness connectors are mated correctly and securely fastened. Do not leave the connectors hanging loose.
