Passenger’s airbag module

  1. Carry out deployment tool self test.
  2. Remove airbag module from fascia. See Repairs.

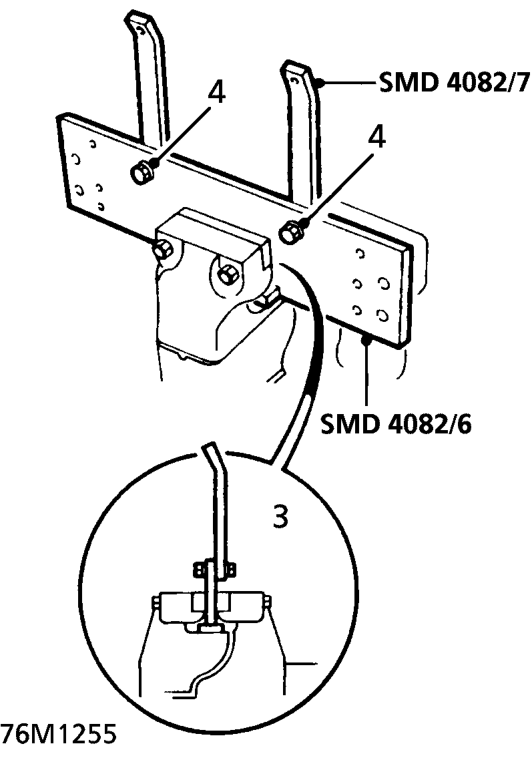

Passenger’s airbag module – Remove airbag module from fascia. See Repairs.
  1. Position tool SMD 4082/6 in vice, ensuring that vice jaws grip tool above bottom flange to prevent possibility of tool being forced upwards from vice. Tighten vice.
  2. Position brackets SMD 4082/7 to tool; lightly tighten bolts.

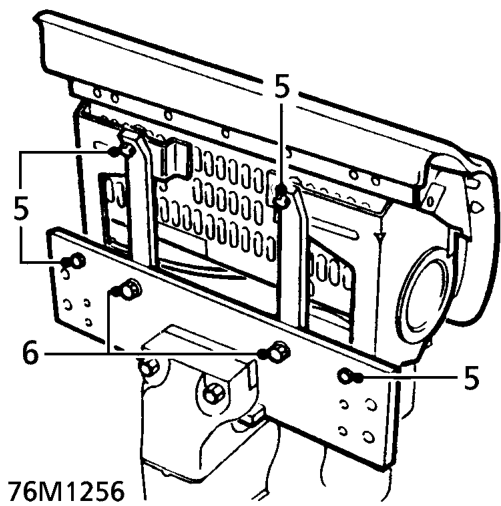

Passenger’s airbag module – Position brackets SMD 4082/7 to tool; lightly tighten bolts.
  1. Position airbag module to tool SMD 4082/6. Ensure module is correctly secured using all fixings.
  2. Ensure airbag module mounting brackets are secure.
