Warning labels

WARNING LABELS

A combination of symbols/icons are displayed (either in a suitable, prominent position or are attached to the component itself) to indicate: (a)The need for caution when working in close proximity to SRS components; (b)The publication where suitable reference and advice can be found (usually Repair Manual or Owner’s Handbook).

NOTE: It is imperative that before any work is undertaken on the SRS system that the appropriate publication is read thoroughly. The following list indicates current locations for warning labels. Exact positions may vary dependent on legislation and market trends.

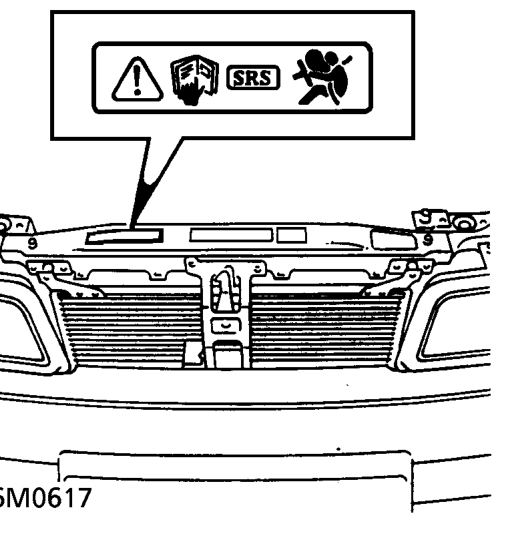

1. Bonnet locking platform

Refer to the Owner’s Handbook for information on the SRS system.

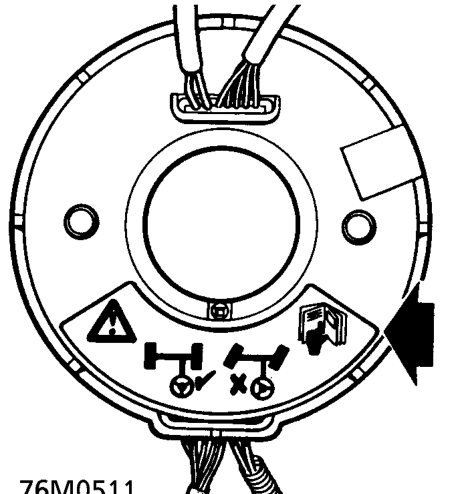

2. Rotary coupler

ENSURE WHEELS ARE STRAIGHT AHEAD BEFORE REMOVAL AND REFITTING. DO NOT ROTATE MECHANISM. Refer to the Repair Manual for information on the airbag system.

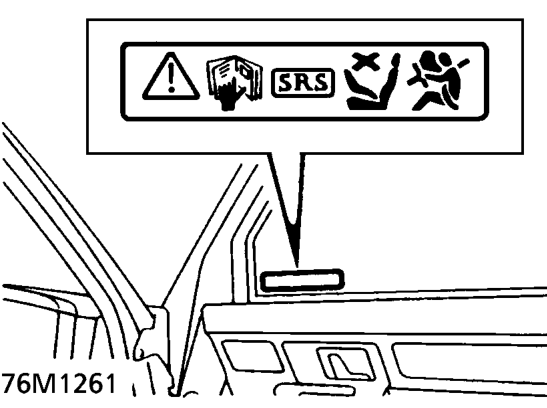

3. Driver’s and Passenger’s front door glass

Refer to the Owner’s Handbook for information on the airbag system.
