Rover 800 Workshop Manual (1996-1999)21 · Restraint systems
21 · Body & interior

Passenger’s airbag module

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Precautions › Passenger’s airbag module
Restraint systemsPassenger’s airbag module · page 1 of 2

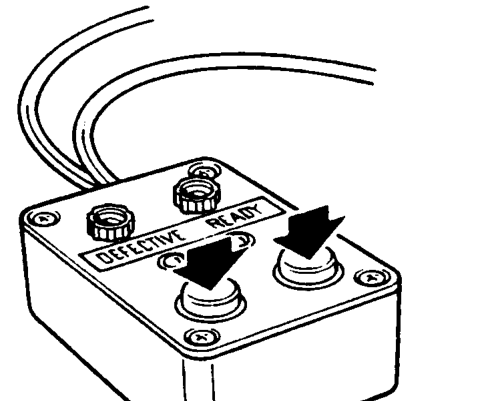

Diagram
  1. Press both operating buttons to deploy airbag module.
  2. DO NOT return to airbag module for 30 minutes.
  3. Using gloves and face mask, remove airbag module from steering wheel, place airbag module in plastic bag and seal bag.
  4. Transport deployed airbag module to designated area for incineration.

NOTE: DO NOT transport airbag module in the vehicle passenger compartment.

  1. Scrap all remaining parts of airbag system. DO NOT re-use or salvage any parts of the airbag system including steering wheel or steering column.

Passenger’s airbag module

  1. Carry out deployment tool self test.
  2. Open glove box.

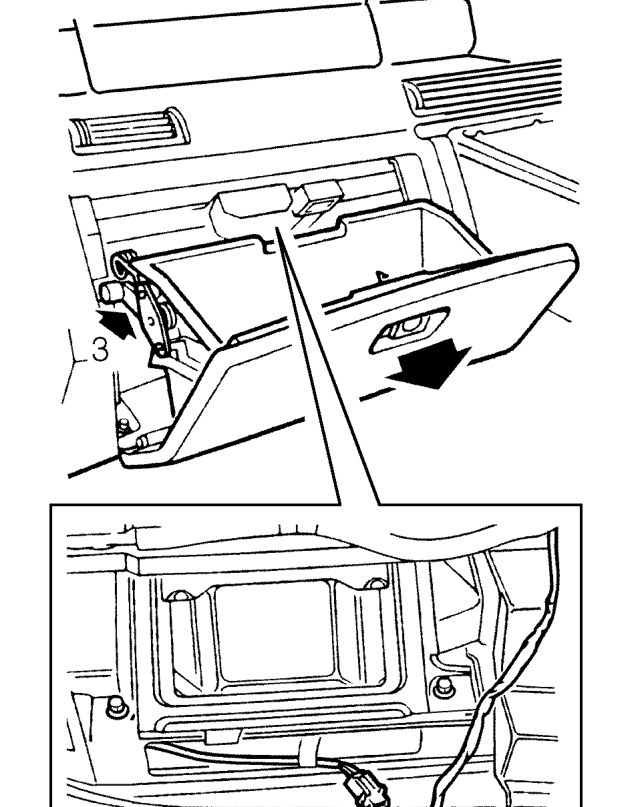

Passenger’s airbag module – Open glove box.
  1. Align glove box stops with cut-outs in fascia and lower glove box.
  2. Disconnect airbag harness connector.
