RH Front Seat Belt Pre-tensioner
- Make
- Rover
- Model
- 800 Workshop Manual
- Year
- 1996–1999
- Section
- Precautions › RH Front Seat Belt Pre-tensioner
‹ Prev LH Front Seat Belt Pre-tensionerNext › Deployment with seat belt pre-tensioner removed from vehicle.
Restraint systemsRH Front Seat Belt Pre-tensioner
RH Front Seat Belt Pre-tensioner
WARNING: Ensure tool SMD 4082/1 is not connected to battery.

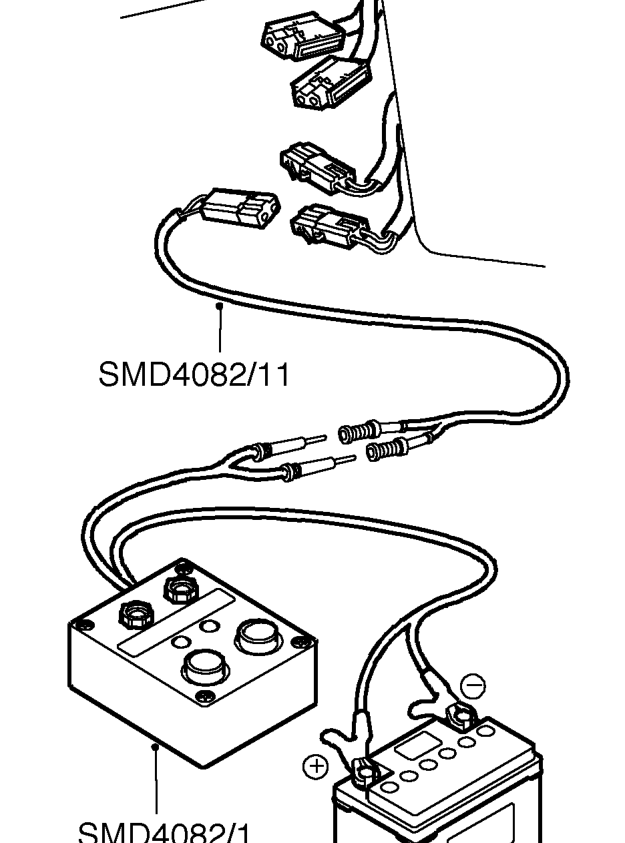

- Connect flylead SMD 4082/11 to BLUE, RH pre-tensioner harness connector.
- Connect flylead SMD 4082/11 to tool SMD 4082/1.
- Connect tool SMD 4082/1 to battery.
WARNING: Ensure all personnel are standing at least 5 metres away from vehicle.

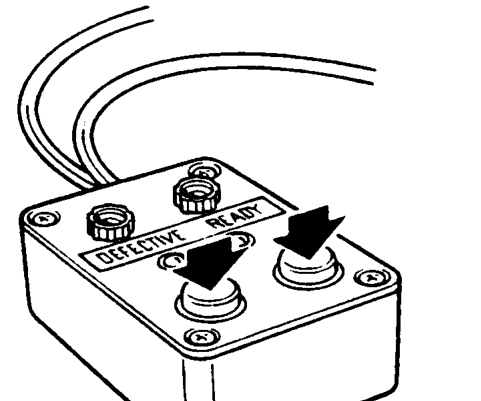

- Press both operating buttons to deploy pre-tensioner.
- DO NOT return to vehicle for 5 minutes.
- Remove front seat belt pre-tensioner assembly from vehicle.
- Scrap pre-tensioner assembly. DO NOT re-use or salvage any parts of the pre-tensioner assembly.
WARNING: If a suspected ’live’ unit fails to deploy using the above procedure, store the unit in accordance with Storage Procedures outlined in this section and inform Rover Group.
