Rover 800 Workshop Manual (1996-1999)21 · Restraint systems
21 · Body & interior

LH Front Seat Belt Pre-tensioner

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Precautions › LH Front Seat Belt Pre-tensioner
Restraint systemsLH Front Seat Belt Pre-tensioner

LH Front Seat Belt Pre-tensioner

Lh front seat belt pre-tensioner

WARNING: Ensure tool SMD 4082/1 is not connected to battery.

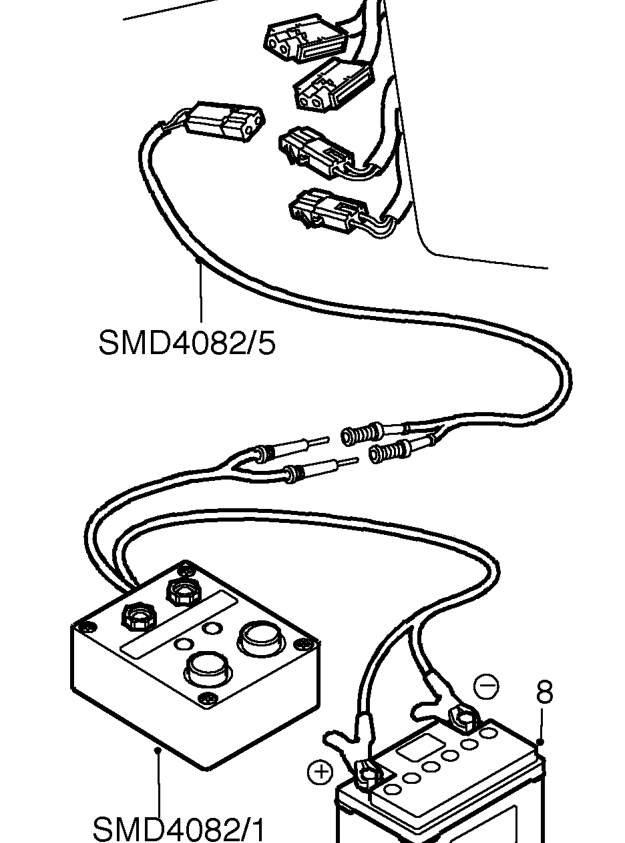

  1. Connect flylead SMD 4082/5 to RED, LH pre-tensioner harness connector.
  2. Connect flylead SMD 4082/5 to tool SMD 4082/1.
  3. Connect tool SMD 4082/1 to battery.

WARNING: Ensure all personnel are standing at least 5 metres away from vehicle.

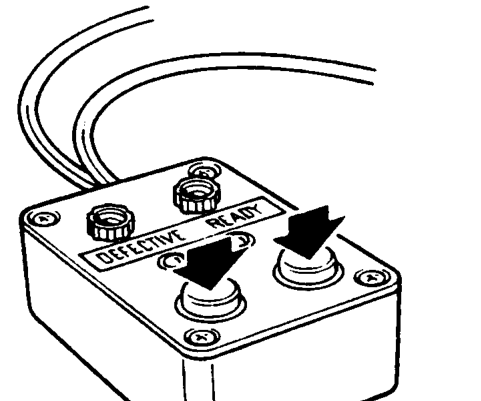

Lh front seat belt pre-tensioner – Connect tool SMD 4082/1 to battery.
  1. Press both operating buttons to deploy pre-tensioner.
  2. DO NOT return to vehicle for 5 minutes.
  3. Remove front seat belt pre-tensioner assembly from vehicle.
  4. Scrap pre-tensioner assembly. DO NOT re-use or salvage any parts of the pre-tensioner assembly.
