Passenger’s airbag module (page 2 of 2)

WARNING: Ensure tool SMD 4082/1 is not connected to battery.

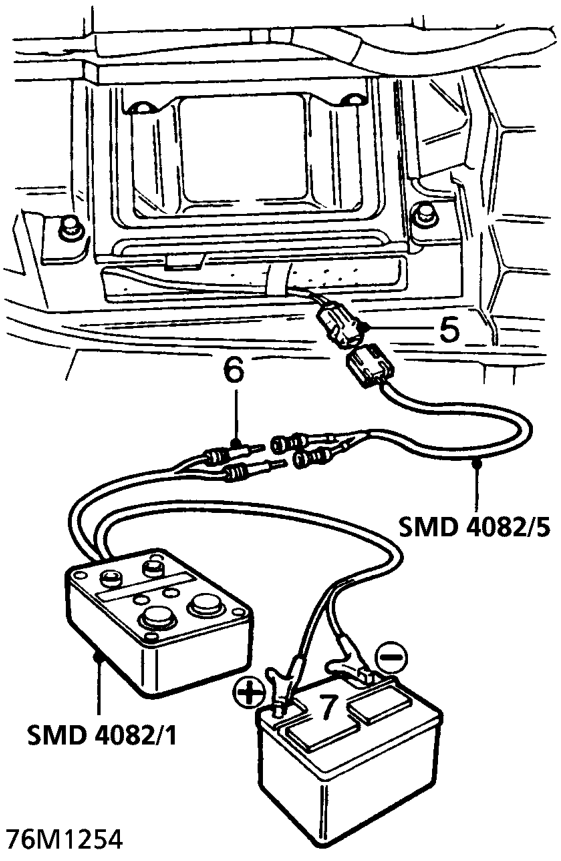

5. Connect flylead SMD 4082/5 to harness connector.
6. Connect flylead SMD 4082/5 to tool SMD 4082/1.

WARNING: Ensure airbag module is secure within fascia.

7. Connect tool SMD 4082/1 to battery.

WARNING: Ensure all personnel are standing at least 15 metres away from vehicle.

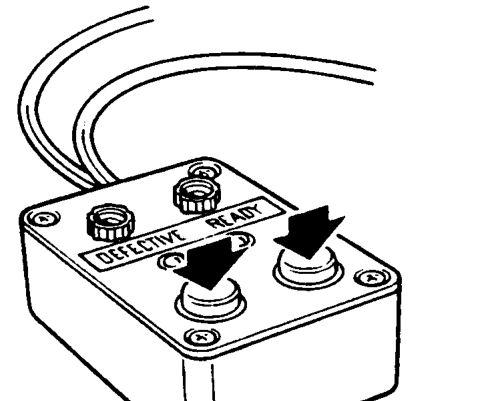

8. Press both operating buttons to deploy airbag module.
9. DO NOT return to airbag module for 30 minutes.
10. Using gloves and face mask, remove airbag module from fascia, place airbag module in plastic bag and seal bag.
11. Transport deployed airbag module to designated area for incineration.

NOTE: DO NOT transport airbag module in the vehicle passenger compartment.

12. Scrap all remaining parts of airbag system. DO NOT re-use or salvage any parts of the airbag system.
