Restraint systemsRotary coupler · page 2 of 3
Diagram

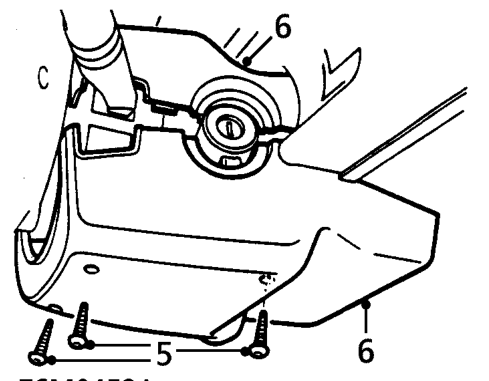

  1. Remove 3 screws securing lower half of steering column cowl.
  2. Separate and remove 2 halves of cowl.
Separate and remove 2 halves of cowl.

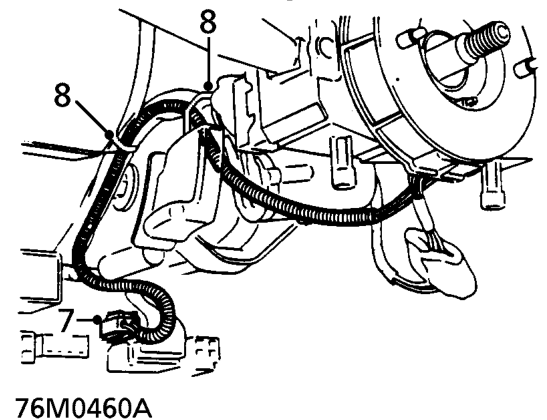

  1. Release airbag harness multiplug from bracket and disconnect multiplug.
  2. Remove 2 cable ties securing airbag harness to column switch harness.
Remove 2 cable ties securing airbag harness to column switch harness.

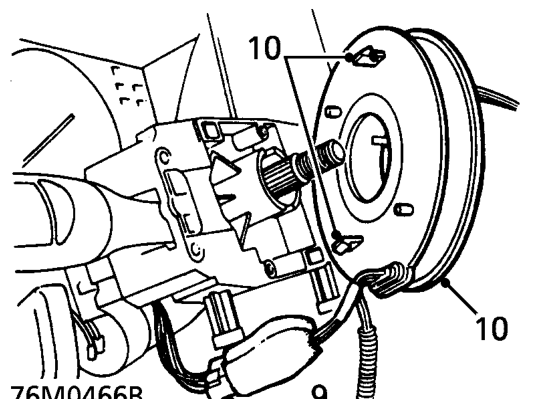

  1. Disconnect rotary coupler multiplug from steering column harness.

CAUTION: Ensure road wheels are straight ahead.

  1. Release 2 clips securing rotary coupler and remove rotary coupler.
Release 2 clips securing rotary coupler and remove rotary coupler.

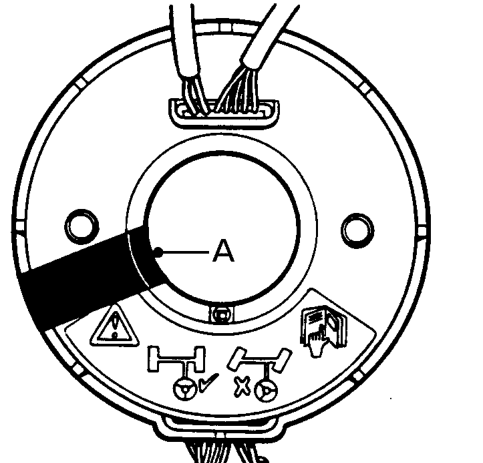

  1. If rotary coupler is being re-used place a piece of adhesive tape around moulding in position A to prevent rotation.

CAUTION: Store rotary coupler in a plastic bag. DO NOT rotate mechanism whilst removed.
