Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual22 · Body
22 · Body & interior

Central locking

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Doors › Central locking
BodyCentral locking

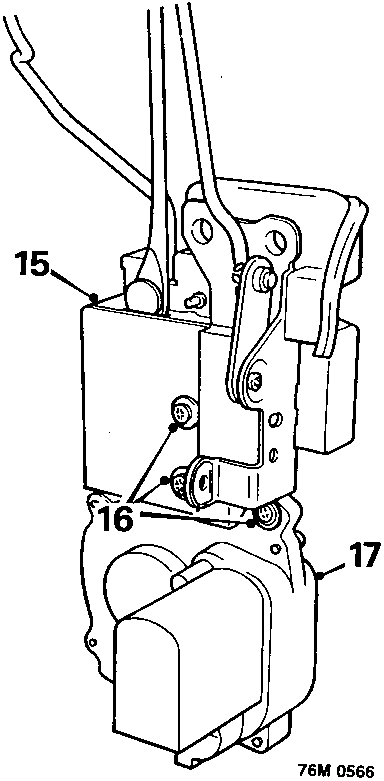

Diagram of door latch assembly showing callout numbers 15, 16, and 17
  1. Remove door latch assembly.

Central locking

  1. Remove 3 screws (TX10 Torx bit) securing lock motor to door latch.
  2. Remove lock motor and spacer.

Refit

Central locking

  1. Fit spacer and secure lock motor to door latch, fit and tighten screws.

All models

  1. Position door latch assembly to door.
  2. Connect link rods to latch and secure clips.
  3. Raise outside handle, fit link rod to handle and secure clip.

Note: Ensure position of threaded link rod is not disturbed when connecting to outside handle.

  1. Central locking: Connect lock motor fly – lead; secure clips on fly – lead and connector to door.
  2. Position latch assembly to mounting and tighten screws to 6 Nm.
  3. Not Coupé or Cabriolet: Loosely fit screw to guide channel.
  4. Cabriolet: Fit window rear guide channel and loosely fit screws.
  5. Lower and raise window, tighten guide channel screws.
  6. Position plastic sheet to door.
  7. 4 and 5 door models – if fitted: Position window control unit to door, fit and tighten screws.
  8. Fit door trim pad, see Front door trim pad.

DOOR LATCH AND CENTRAL LOCKING MOTOR – REAR

Service Repair No. Door latch 76.37.13
Service Repair No. Motor 86.26.09

Remove

  1. Fully raise window.
  2. Remove door trim pad, see Rear door trim pad.

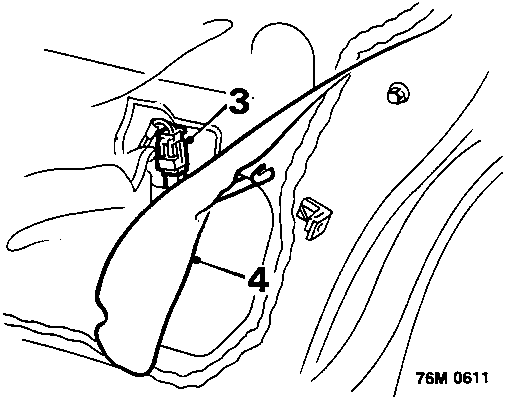

Diagram of rear door interior showing callout numbers 3 and 4
  1. Disconnect multiplug from motor fly – lead and release connector clip from door.
  2. Release plastic sheet from rear of door.
  3. Release motor fly – lead clip from door.

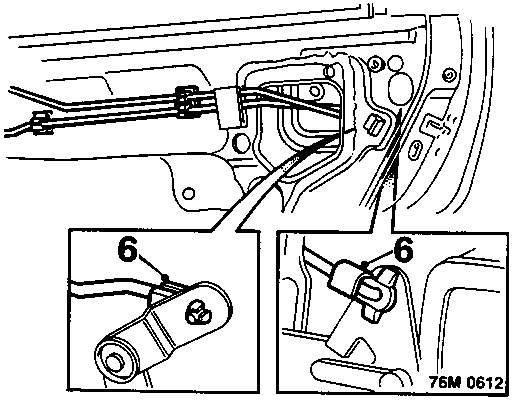

Diagram of door latch mechanism showing callout number 6 in two detail views
  1. Release clips securing sill button and interior handle link rods; release link rods from latch.
