BodyCentral locking motor

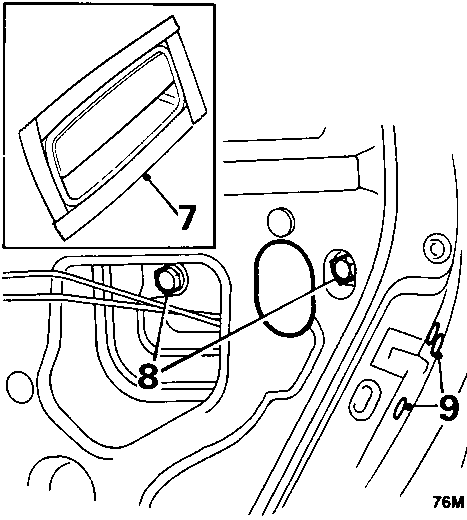

Diagram showing exterior door handle, access hole, and latch assembly with callout numbers 7, 8, and 9.
  1. Protect paintwork around exterior handle with masking tape.
  2. Remove tape over access hole in door and remove 2 bolts securing exterior handle to door.
  3. Remove 3 screws securing latch assembly to door.

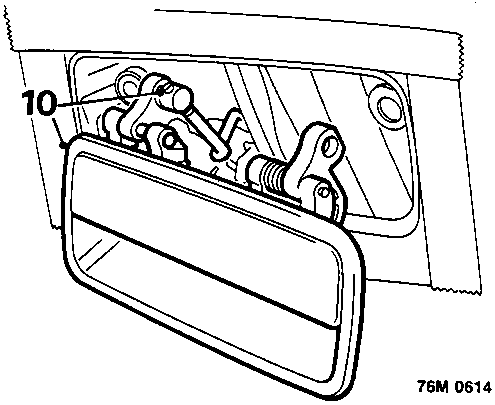

Diagram showing the exterior handle being released from the door panel with callout number 10.
  1. Release exterior handle from door, disconnect link rod and remove handle.

CAUTION: Take care not to disturb setting of threaded link.

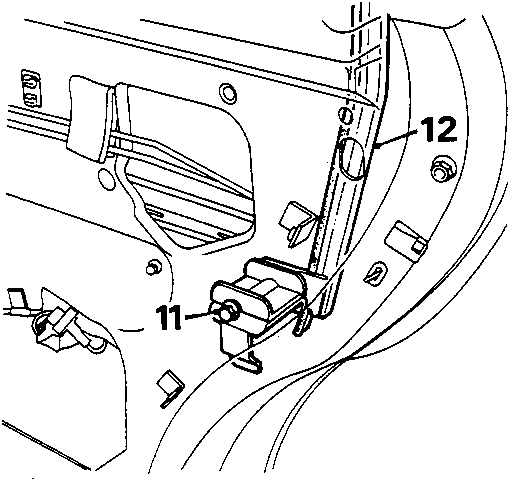

Diagram showing the lower end of the window rear guide channel and latch assembly with callout numbers 11 and 12.
  1. Remove screw securing lower end of window rear guide channel and collect channel spacer.
  2. Move rear guide channel aside to ease access and remove latch assembly from door.

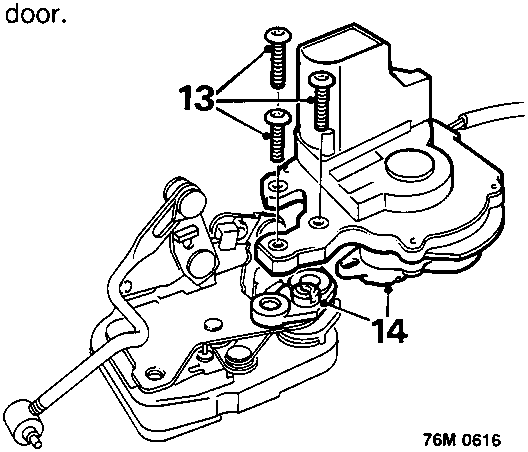

Diagram showing the central locking motor attached to the latch assembly with callout numbers 13 and 14.

Central locking motor

  1. Remove 3 screws securing motor to latch.
  2. Remove motor and collect spacer.
