Window motor – coupe

WINDOW MOTOR – COUPE

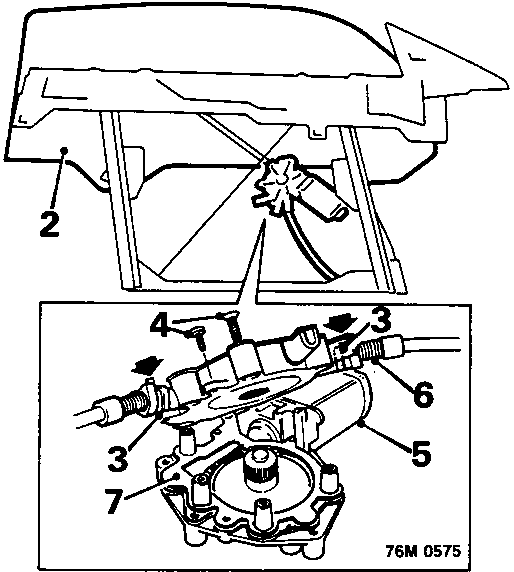

Service Repair No. 86.25.04

Remove

1. Remove door glass cassette, see Door glass cassette – Coupe.

2. Place cassette assembly, glass side downwards, on soft working surface.
3. Secure cover to cable drum assembly with small cable ties prior to removing fixings.
4. Remove 5 Torx screws (TX25 Torx bit) and 3 cross – head screws securing motor to cable and drum assembly.
5. Remove window motor.
6. Remove flexible coupling and splined drive from cable drum assembly.
7. Remove gasket.

Refit

1. Fit gasket to motor.
2. Ensure correct location of worm wheel, flexible coupling and splined drive in window motor.
3. Fit motor to cable drum assembly and tighten screws.
4. Remove cable ties securing cover to cable drum.
5. Fit door glass cassette, see Door glass cassette – Coupe.

DOOR GLASS – COUPE

Service Repair No. 76.31.01

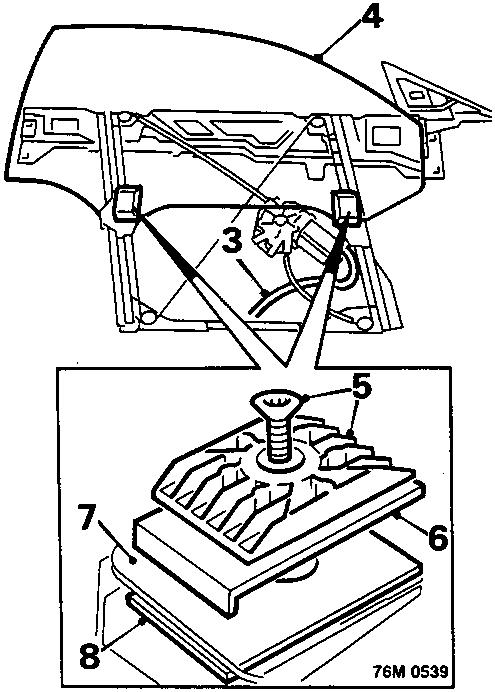

Remove

1. Remove door glass cassette, see Door glass cassette – Coupe.
2. Place cassette on a clean work surface, glass side upwards.

3. Connect a 12V battery to cable coloured:
   Red/Yellow (R/Y) – Driver’s side
   Red/Blue (R/U) – Passenger’s side

Note: Reversing the connections will change the direction of motor drive.

4. Motor door glass to half open position.
5. Remove screws (TX40 Torx bit) and remove glass clamp plates.
6. Remove clamp plate plastic shims.
7. Remove door glass.
8. Remove lifting plate plastic shims.

Note: The lifting plate shims may have metal spacer shims attached. If this is the case, ensure that shims are kept with their respective lifting plates.
