Refit

Refit

1. Fit motor to regulator.
2. Fit rivets motor to regulator and peen over ends.
3. Position regulator to door and tighten bolts to 6 Nm.
4. Align regulator top slide to door and fit bolts, do not tighten.
5. Remove wedges retaining glass and lower glass to regulator.
6. Align glass to regulator and tighten bolts to 6 Nm.
7. Raise window fully to align top slide.
8. Fit and tighten regulator top slide bolts to 6 Nm.

Window glass

9. Enter glass into door.
10. Align glass to regulator and fit bolts.
11. Tighten bolts, glass to regulator.
12. Fit rear channel to door.
13. Align rear channel to door and frame.
14. Fit rubber to rear channel.
15. Fit rear channel spacer to door.
16. Fit but do not tighten bolt, channel to door.
17. Fit but do not tighten nut, channel to frame.
18. Motor window up and down to align glass channel.
19. Tighten bolt and nut, channel to door and frame.
20. Fit the plastic sheet to door.
21. Secure sheet edges to door.
22. Connect the door lock multiplug.
23. Secure harness clips to door.
24. Fit arm rest support bracket.
25. Fit and tighten screws, bracket to door.
26. Fit door trim pad, see Rear door trim pad.
27. Fit outer waist seal.
28. Fit inner and outer cheater panels.

CENTRAL DOOR LOCKING CONTROL UNIT

Service Repair No. 86.26.01

Remove

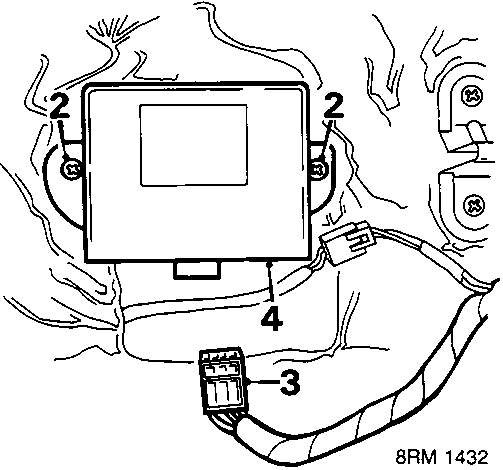

1. Remove passenger's front door trim pad, see Front door trim pad.

2. Remove 2 screws securing control unit to door.
3. Disconnect multiplug from control unit.
4. Remove control unit.

Refit

1. Connect multiplug to control unit.
2. Fit control unit to door and tighten screws.
3. Fit door trim pad, see Front door trim pad.
