Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual22 · Body
22 · Body & interior

Front door glass and manual regulator

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Doors › Front door glass and manual regulator
BodyFront door glass and manual regulator
  1. Fit interior handle escutcheon, tighten screw.
  2. Manual window: Close window, fit regulator handle and escutcheon with handle at 45° above horizontal to rear. Press clip into place to engage slot in spindle.
  3. Fit cheater panel.

FRONT DOOR GLASS AND MANUAL REGULATOR

Service Repair No. Glass – 76.31.01
Service Repair No. Regulator – 76.31.45

Remove

  1. Remove door trim pad, see Front door trim pad.

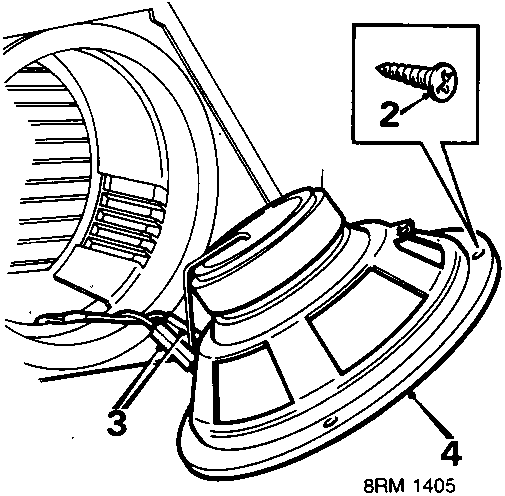

Diagram showing speaker housing, screws, and wiring connections inside a door panel
  1. Remove 4 screws, speaker housing to door.
  2. Disconnect 2 speaker Lucars.
  3. Remove speaker.

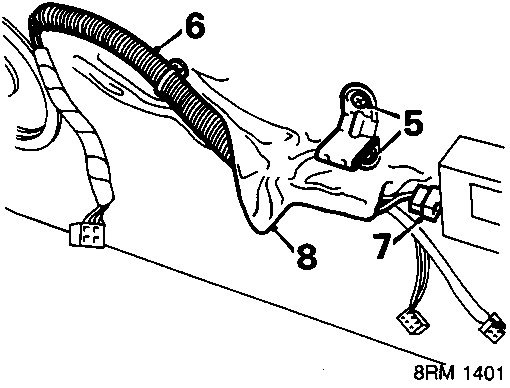

Diagram showing arm rest support bracket, door harness, plastic sheet, and regulator access points inside the door
  1. Remove 2 screws, arm rest support bracket to door and remove bracket.
  2. Central locking: Release door harness from securing clips.
  3. Central locking: Disconnect door lock multiplug.
  4. Remove plastic sheet from door.
  5. Wind regulator up or down for access to glass channel bolts.

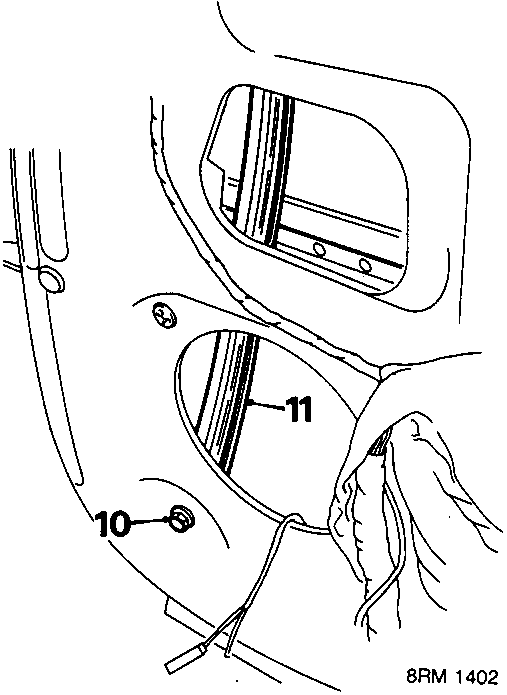

Diagram showing bolt and channel release mechanism for front glass channel to door
  1. Remove bolt, front glass channel to door.
  2. Release channel from glass.

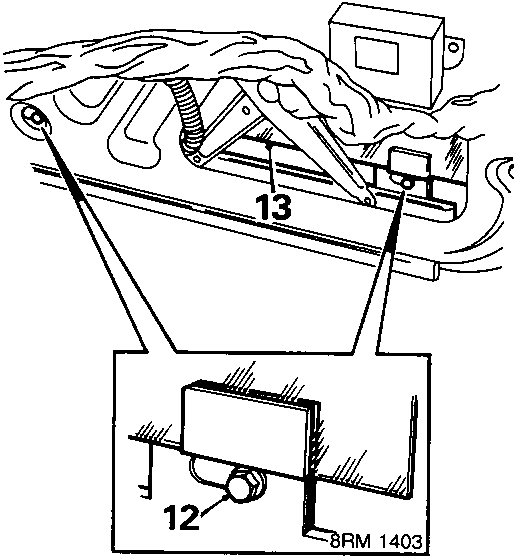

Diagram showing bolts attaching glass to window regulator and release mechanism for glass from regulator
  1. Remove 2 bolts, glass to window regulator.
  2. Release glass from regulator and remove glass from door.
