Doors › Refit
BodyRefit

Service Repair No. Glass – 76.31.02
Service Repair No. Regulator – 76.31.46

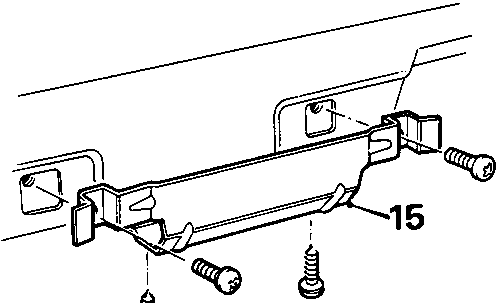

Diagram showing arm rest retaining bracket and screws labeled 14 and 15

8RM 1228

  1. Remove 4 screws, arm rest retaining bracket.
  2. Remove arm rest bracket.
  3. Remove arm rest.
  4. Remove 6 retaining studs.
  5. Transfer components removed to new trim pad.

Refit

  1. Position trim pad to door.
  2. Electric window: Connect window lift multiplug.
  3. Engage top edge of trim pad and press studs into engagement.
  4. Fit and tighten screws, trim pad to door.
  5. Fit interior handle escutcheon, tighten screw.
  6. Manual window: Close the window, fit regulator handle and escutcheon with handle at 45° above horizontal to rear. Press clip into place to engage slot in spindle.
  7. Fit cheater panel.

Remove

  1. Remove door trim pad, see Rear door trim pad.

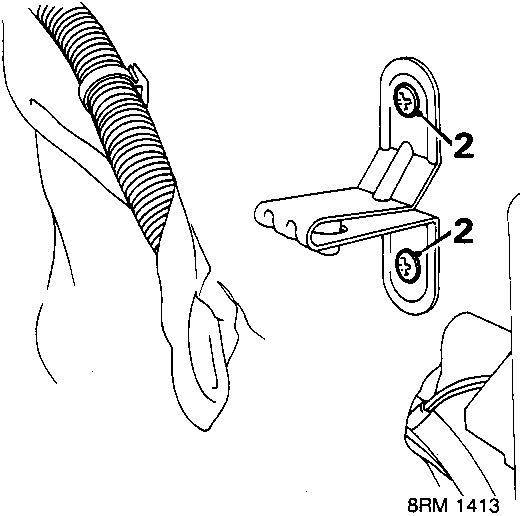

Diagram showing arm rest support bracket with two screws labeled 2

8RM 1413

  1. Remove 2 screws, arm rest support bracket to door and remove bracket.

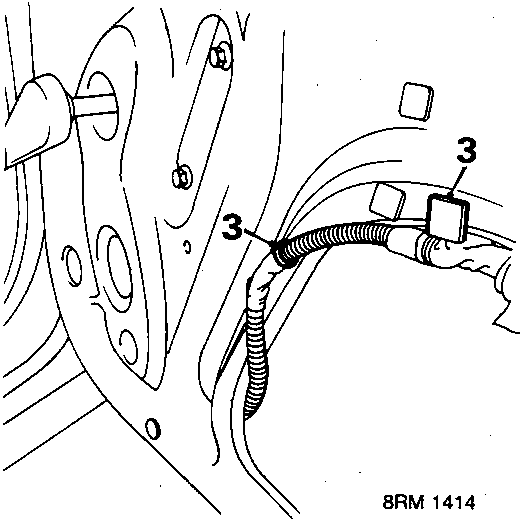

Diagram showing central locking harness clips labeled 3 inside the door panel

8RM 1414

  1. Central locking: Release clips securing harness to door.
  2. Central locking: Disconnect door lock multiplug.
  3. Remove plastic sheet from door.
  4. Wind regulator up or down for access to glass channel bolts.
