Refit

Regulator

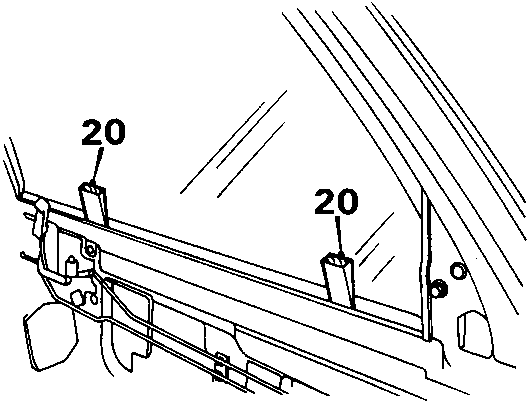

1. 20. Raise glass to top of door frame and fit wedges to retain glass.

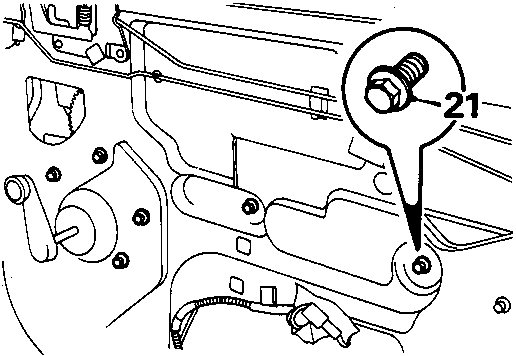

21. 21. Remove 6 bolts, regulator to door.
22. 22. Remove regulator from door.

Waist seal

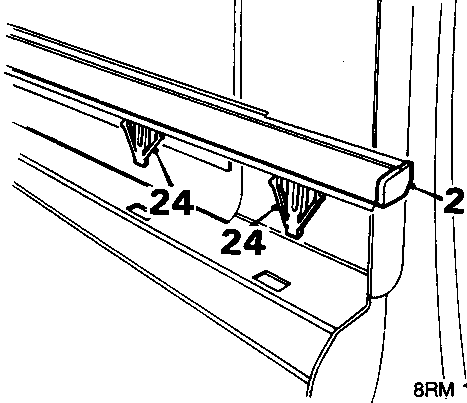

23. 23. Remove front end cap from waist seal.
24. 24. Remove retainer from end cap and slide clips from waist seal.
25. 25. Fit new clips and end cap to waist seal.

Refit

Regulator

1. Position regulator to door and tighten bolts to 6 Nm.
2. Align regulator top slide to door and fit bolts, do not tighten.
3. Remove wedges retaining glass and lower glass to regulator.
4. Align glass to regulator, tighten bolts to 6 Nm.
5. Raise window fully to align top slide.
6. Fit regulator top slide bolts, tighten to 6 Nm.

Glass

7. Enter glass into door.
8. Align glass to regulator and fit bolts.
9. Tighten glass to regulator bolts to 6 Nm.
10. Fit rear channel to door.
11. Align rear channel to door and frame.
12. Fit rubber to rear channel.
13. Fit rear channel spacer and bolt to door, but do not tighten bolt.
14. Fit but do not tighten nut, channel to frame.
15. Wind regulator up or down to align glass channel.
16. Tighten bolt and nut, channel to door and frame to 6 Nm.

Door fittings

17. Fit the plastic sheet to door.
18. Central locking: Connect the door lock multiplug and secure harness clips to door.
19. Fit arm rest support bracket.
20. Fit and tighten screws, bracket to door.
21. Fit door trim pad, see Rear door trim pad.
22. Fit outer waist seal.
23. Fit inner and outer cheater panels.
