Regulator

Service Repair No. Glass – 76.31.01
Service Repair No. Regulator – 76.31.45

Regulator

1. Remove 6 bolts, regulator to door.
2. Withdraw regulator from door.

Refit

1. Position regulator to door and align fixings.
2. Fit bolts to secure regulator, tighten bolts to 6 Nm.
3. Align regulator top slide to door and fit bolts, do not tighten.
4. Operate regulator to align top slide and tighten bolts to 6 Nm.
5. Enter glass into door, align glass to regulator.
6. Fit bolts to regulator and align glass.

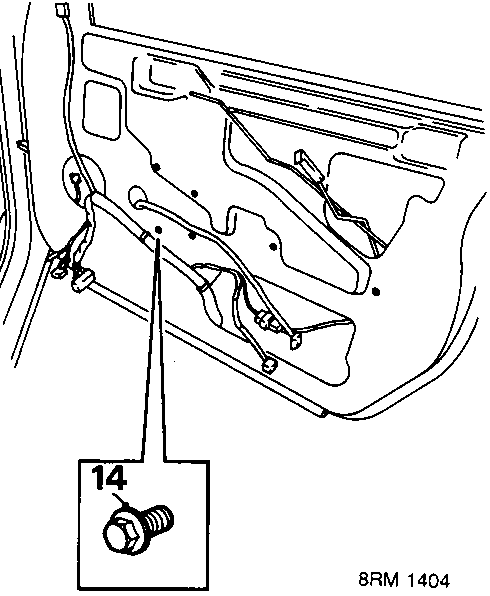

7. Tighten glass to regulator bolts to 6 Nm.
8. Align front glass channel to glass.
9. Fit bolt glass channel to door.
10. Wind regulator up or down to align glass channel.
11. Tighten bolt front glass channel to door 6 Nm.
12. Fit plastic sheet to door and secure sheet edges to door.
13. Central locking: Connect door lock multiplug and secure harness clips to door.
14. Fit arm rest support bracket and tighten screws.
15. Connect Lucars, position speaker to door and tighten screws.
16. Fit door trim pad, see Front door trim pad.

FRONT DOOR GLASS AND ELECTRIC REGULATOR – NOT COUPE

Remove

1. Remove door trim pad, see Front door trim pad.

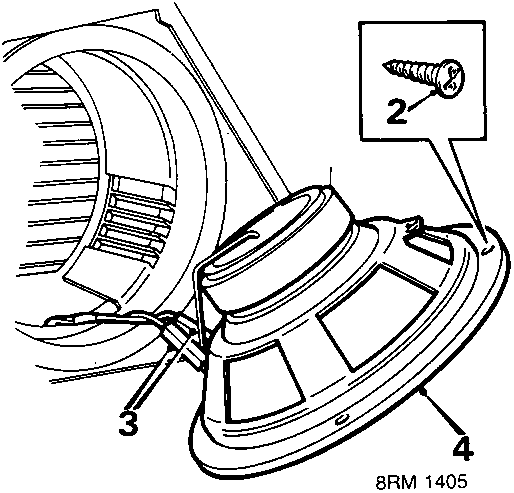

2. Remove 4 screws, speaker housing to door.
3. Disconnect 2 speaker Lucars.
4. Remove speaker.

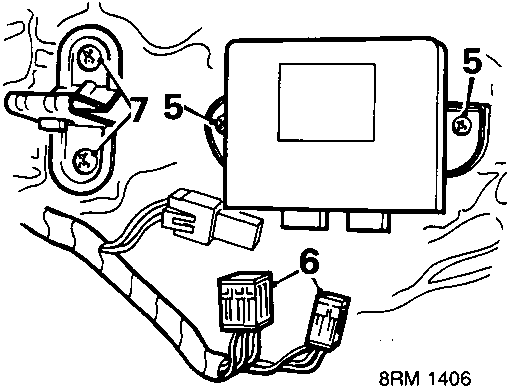

5. Remove 2 screws, window lift control to door.
6. Disconnect 2 multiplugs and remove control unit.
7. Remove 2 screws, arm rest support bracket to door and remove bracket.
