Doors › Remove
BodyRemove

Service Repair No. Glass – 76.31.02

Service Repair No. Regulator – 76.31.46

Remove

  1. Remove door trim pad, see Rear door trim pad.

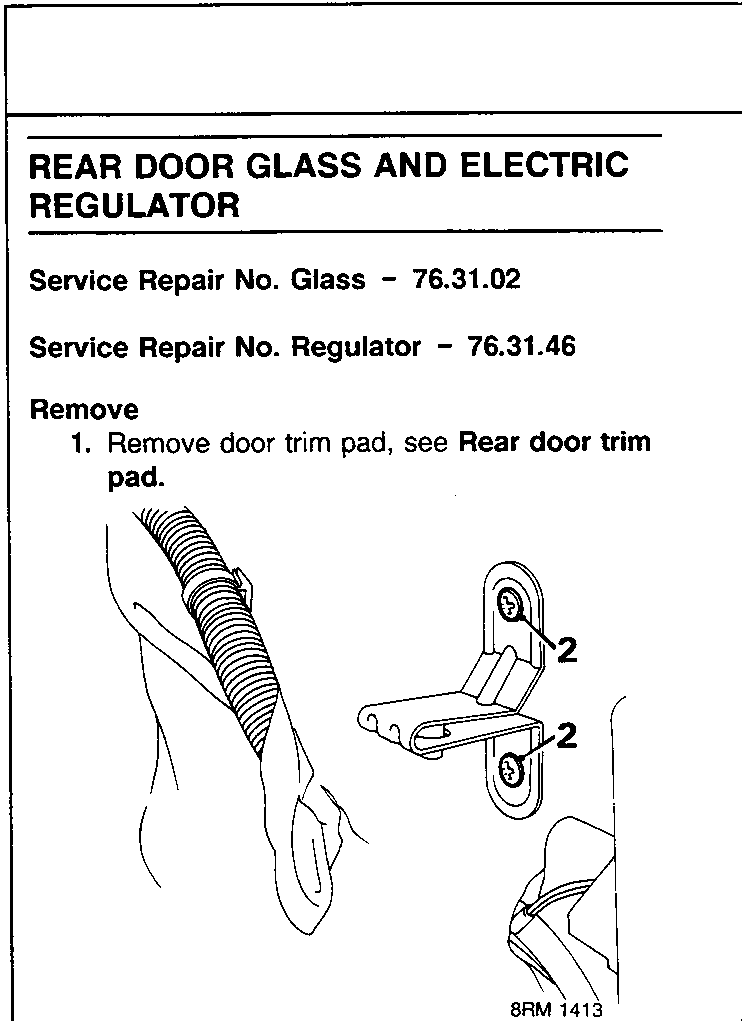

Diagram showing arm rest support bracket and clips securing harness to door, with callout numbers 2 and 3
  1. Remove 2 screws, arm rest support bracket to door and remove bracket.
Illustrates removal of front bumper cover on vehicle

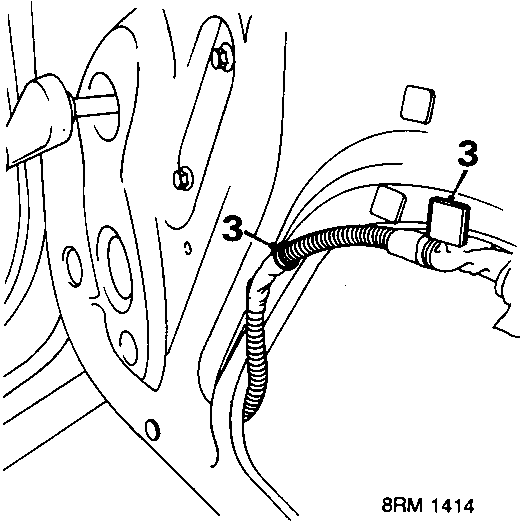

Diagram showing clips securing harness to door, with callout number 3
  1. Release clips securing harness to door.
  2. Disconnect door lock multiplug.
  3. Remove plastic sheet from door.
  4. Motor window up or down for access to glass channel bolts.

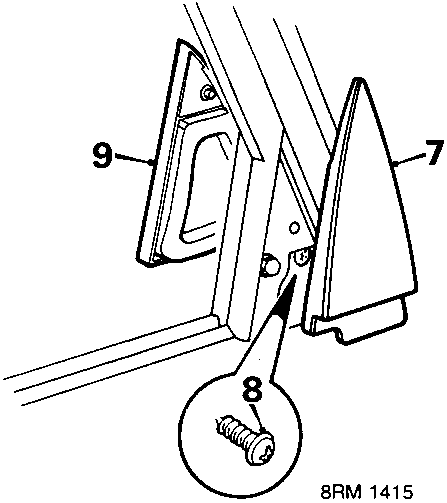

Diagram showing inner and outer cheater panels and screw securing outer cheater panel, with callout numbers 7, 8, and 9
  1. Remove inner cheater panel.
  2. Remove screw securing outer cheater panel
  3. Remove outer cheater panel.

Note: Do not remove waist seal or door glass if removing regulator.

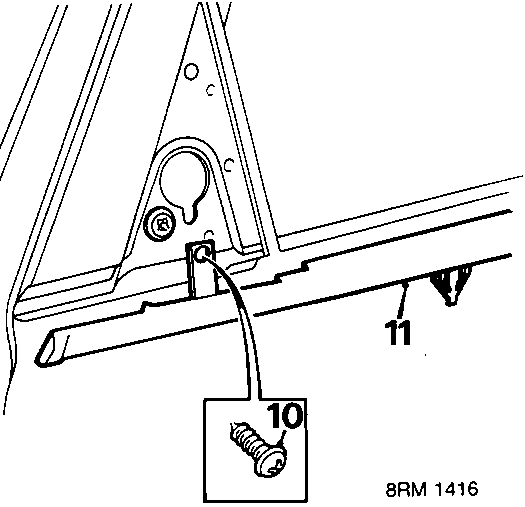

Diagram showing screw from waist seal bracket and release of waist seal from door, with callout numbers 10 and 11
  1. Remove screw from waist seal bracket.
  2. Release waist seal from door.

Note: Renew waist seal if damaged.
