Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual22 · Body
22 · Body & interior

Refit

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Doors › Refit
BodyRefit
Diagram of rear door interior showing location of screws, studs, and trim pad

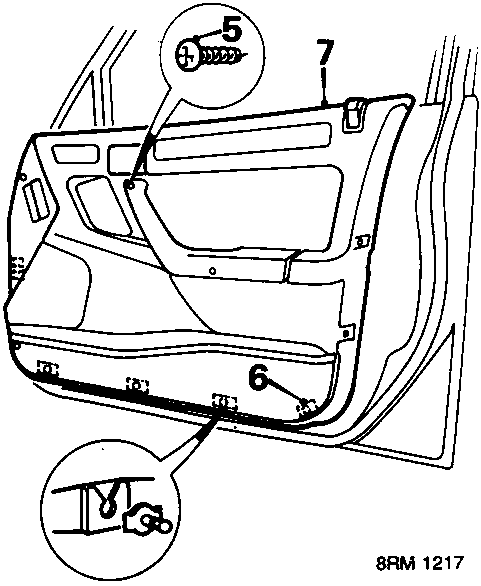

5. Remove 5 screws, trim pad to door.

Note: 4 door trim pad fixing shown.

6. Release 5 studs, trim pad to door plugs. 7. Lift to disengage top edge and remove door trim pad. 8. Electric window: Disconnect 2 multiplugs from window lift switch panel – Driver’s door. Multiplug – Passenger’s door .

Do not carry out further dismantling if component is removed for access only

Diagram of window switch housing with wiring connectors and screws

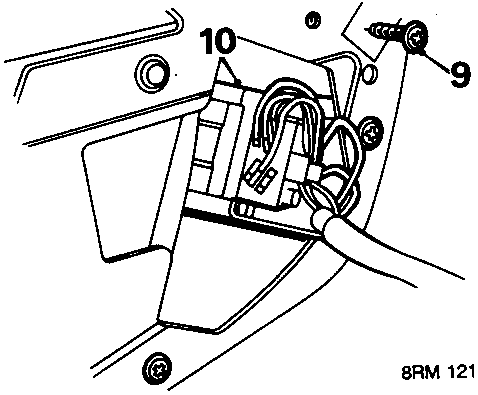

9. Remove 3 screws, window switch housing to trim casing. 10. Remove window switch housing.
Diagram of lower door trim area showing capping inserts, speaker grille, and screw locations

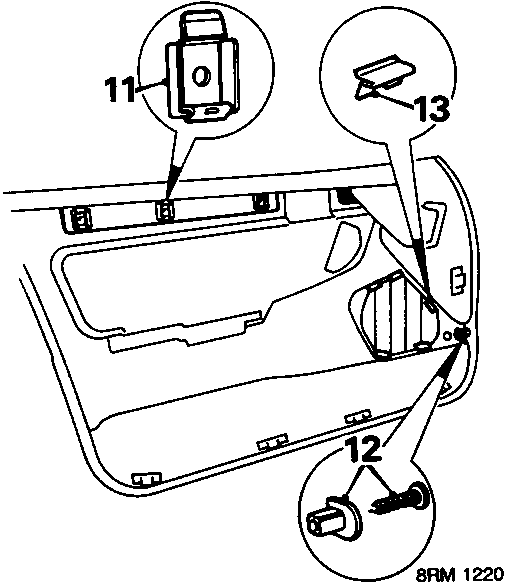

11. Release clips and remove door capping inserts. 12. Remove screw, speaker grille to trim pad. 13. Release 3 clips and remove speaker grille.
Diagram of interior locking button bezel and securing screw

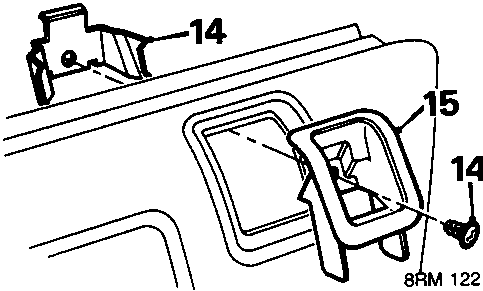

14. Remove screw and clip securing interior locking button bezel. 15. Remove interior locking button bezel.
Diagram of arm rest bracket and retaining studs on the door trim pad

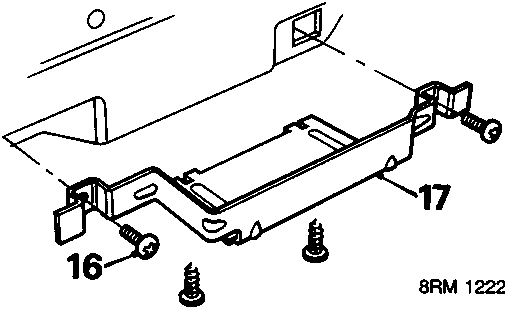

16. Remove 4 screws, arm rest bracket. 17. Remove arm rest bracket. 18. Remove arm rest. 19. Remove 5 retaining studs. 20. Transfer components removed to new trim pad.

Refit

  1. Position trim pad to door.
  2. Electric window: Connect 2 multiplugs to window lift switch panel – Driver’s door. Multiplug – Passenger’s door.
  3. Engage top edge and press studs into engagement.
  4. Fit and tighten screws, trim pad to door.
