Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual22 · Body
22 · Body & interior

Regulator

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Doors › Regulator
BodyRegulator

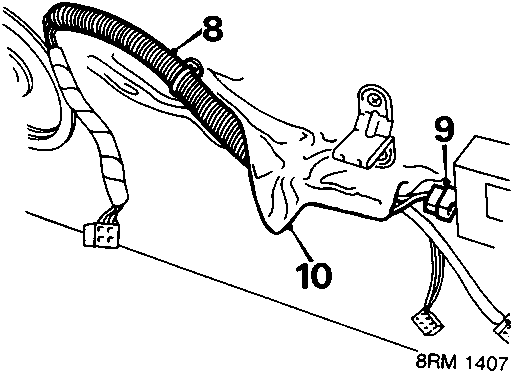

Diagram showing door harness, lock multiplug, and plastic sheet with callout numbers 8, 9, and 10.
  1. Release door harness from securing clips.
  2. Disconnect door lock multiplug.
  3. Remove plastic sheet from door.
  4. Motor window up or down for access to glass channel bolts.

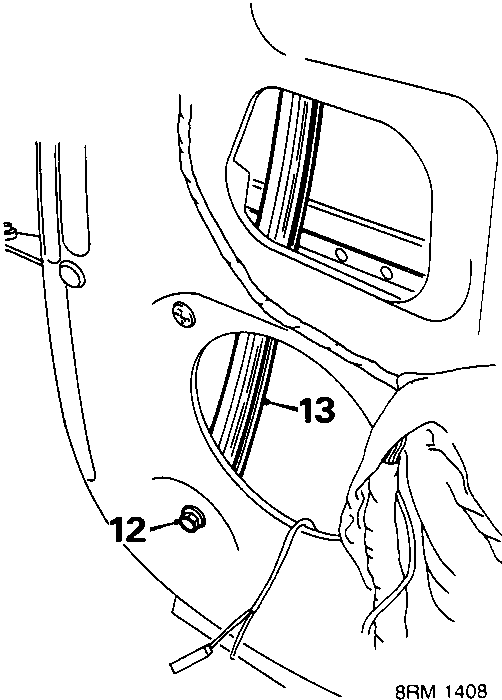

Diagram showing front glass channel bolt and release point with callout numbers 12 and 13.
  1. Remove bolt, front glass channel to door.
  2. Release channel from glass.

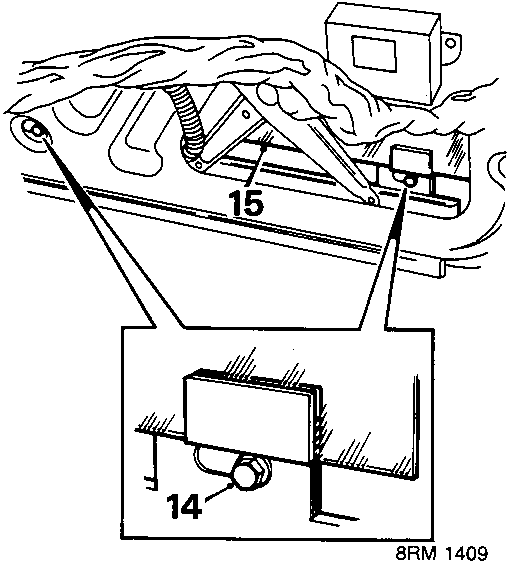

Diagram showing glass attached to window regulator with callout numbers 14 and 15.
  1. Remove 2 bolts, glass to window regulator.
  2. Release glass from regulator and remove glass from door.

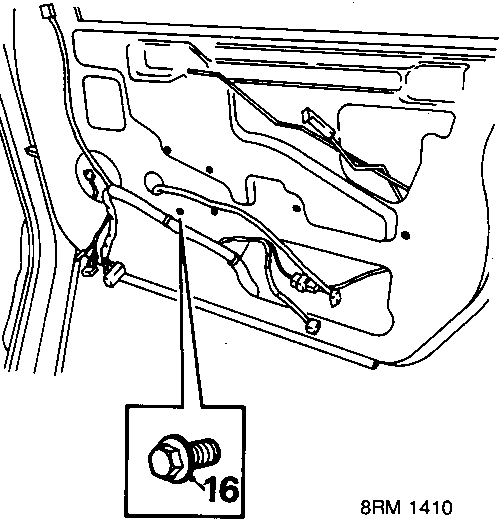

Diagram showing window regulator mounting bolts with callout number 16.

Regulator

  1. Remove 6 bolts, regulator to door.
  2. Withdraw regulator from door.
