REAR DOOR TRIM PAD

Service Repair No. Trim pad 76.34.04
Service Repair No. Armrest 76.34.23

Remove

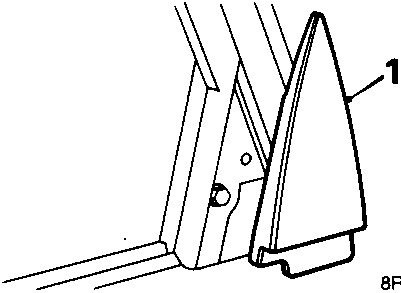

Diagram showing removal of cheater panel from door
  1. Open door, remove cheater panel from door.

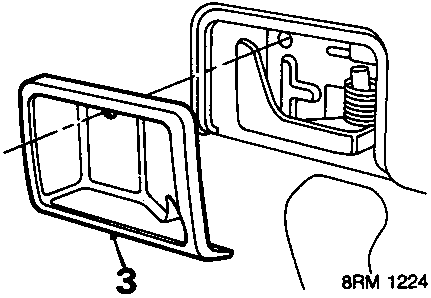

Diagram showing removal of screw and escutcheon from interior door handle
  1. Remove screw, interior door handle escutcheon.
  2. Remove escutcheon.

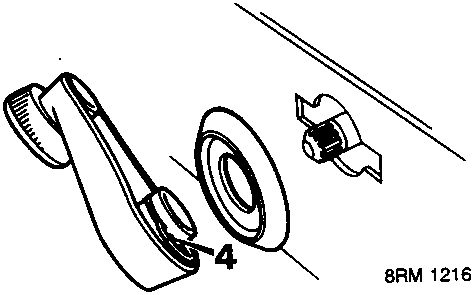

Diagram showing removal of regulator handle and escutcheon using a wire hook for manual window
  1. Manual window: Remove clip from between regulator handle and escutcheon using a wire hook, remove regulator handle and escutcheon.

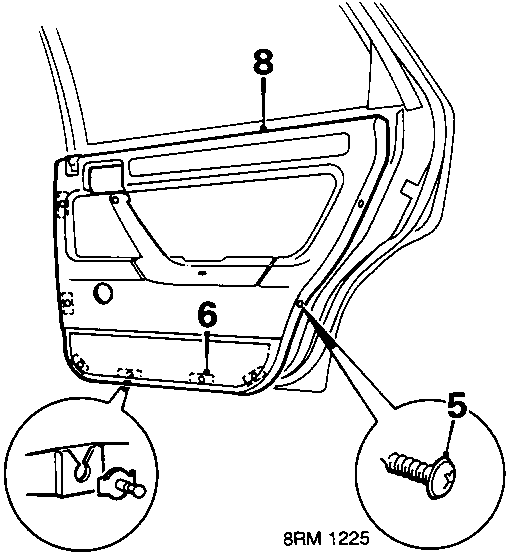

Diagram showing removal of screws, release of studs, disconnecting electric window lift multiplug, and removing trim pad
  1. Remove 3 screws, trim pad to door.
  2. Release 6 studs, trim pad to door plugs.
  3. Electric window: Disconnect electric window lift multiplug.
  4. Remove trim pad.

Do not carry out further dismantling if component is removed for access only

  1. Remove 3 screws, window switch housing to trim pad.
  2. Remove window switch.

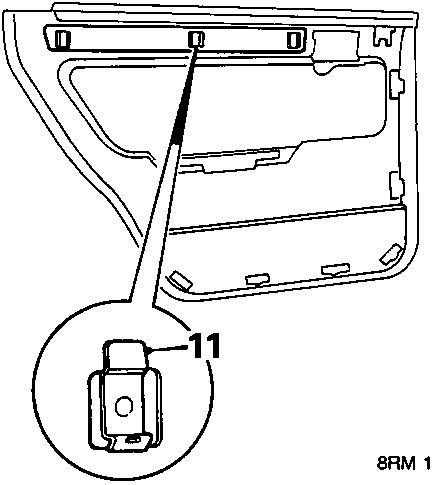

Diagram showing release of clips and removal of door capping inserts
  1. Release clips and remove door capping inserts.

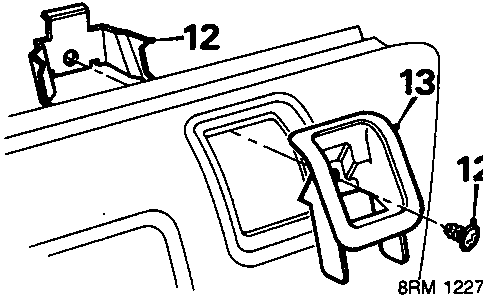

Diagram showing removal of screw and clip securing interior locking button bezel
  1. Remove screw and clip securing interior locking button bezel.
  2. Remove interior locking button bezel.
