Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual22 · Body
22 · Body & interior

Glass

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Doors › Glass
BodyGlass

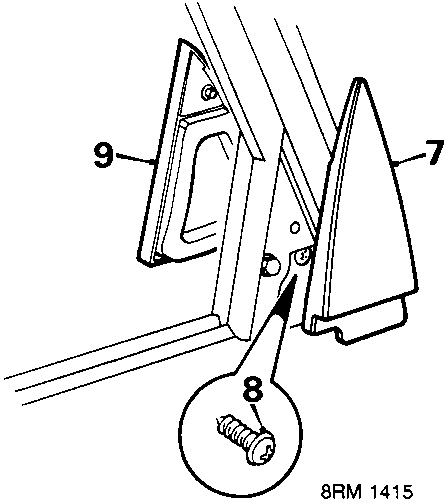

Diagram showing inner cheater panel, outer cheater panel, and screw securing the panel to the door
  1. Remove inner cheater panel.
  2. Remove screw, outer cheater panel to door
  3. Remove outer cheater panel.

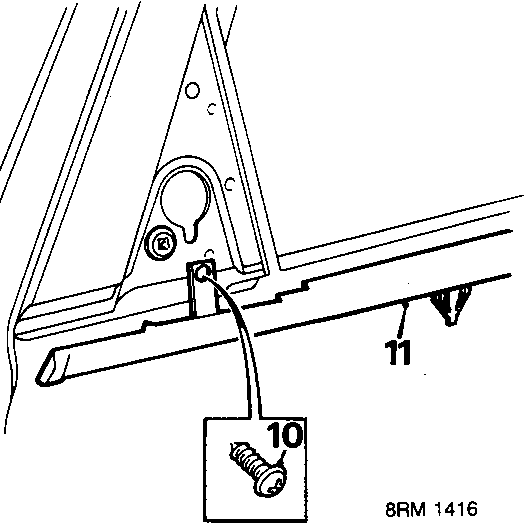

Diagram showing waist seal bracket screw and waist seal on the door frame

Note: Do not remove waist seal or door glass if removing regulator.

  1. Remove screw from waist seal bracket.
  2. Remove waist seal from door.

Note: Renew waist seal if damaged.

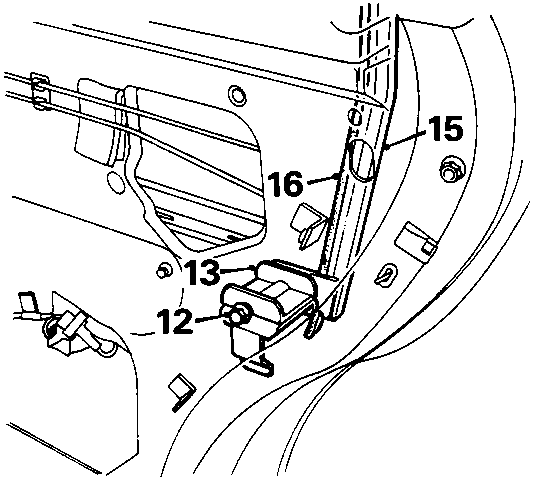

Diagram showing rear channel, rubber, bolt, nut, and spacer on the door frame
  1. Remove bolt rear channel to door.
  2. Collect spacer.
  3. Slacken nut rear channel to door frame.
  4. Release channel from glass.
  5. Release rubber from rear channel and remove rear channel from door.

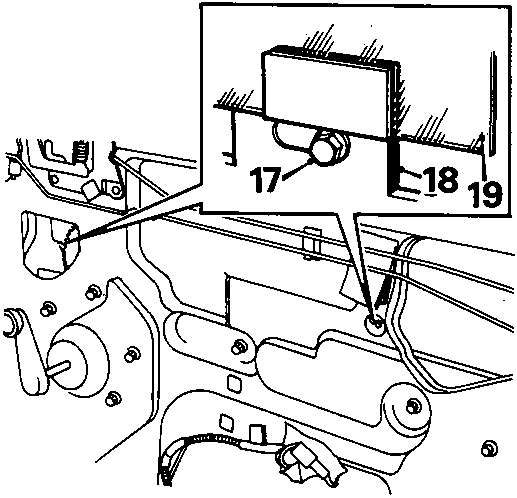

Diagram showing bolts securing glass to window regulator and release mechanism for glass
  1. Remove bolts glass to window regulator.
  2. Release glass from regulator.

Glass

  1. Remove glass from door.
