DOOR GLASS ADJUSTMENT – CABRIOLET

Service Repair No. 76.31.04

Adjust

1. Raise door glass fully and close door.

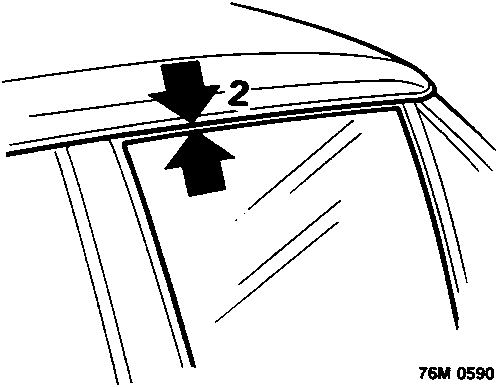

2. Check gap, top edge of door glass to hood material.
   Door glass gap = 3mm
3. Remove door trim pad, see Front door trim pad.

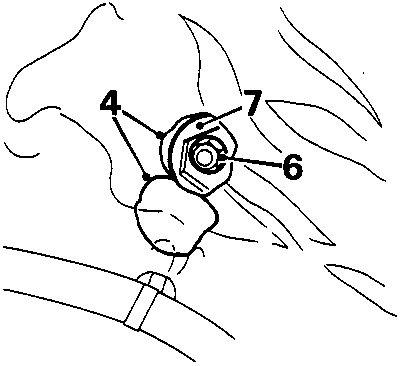

4. Locate adjustment hole in door panel and cut access flap in plastic sheet.
5. Lower door glass slightly to align adjustment cam hole.
6. Slacken adjustment cam locknut.
7. Rotate adjustment cam to correct glass height.
8. Tighten locknut.
9. Raise door glass fully and close door.
10. Recheck glass height.
11. Reseal plastic sheet.
12. Fit door trim pad, see Front door trim pad.

DOOR GLASS ADJUSTMENT – COUPE

Service Repair No. 76.31.04

Adjust

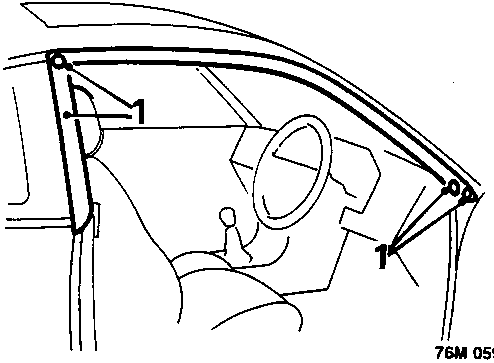

1. Release 3 studs securing door glass seal and remove seal.

2. Raise door glass fully.
3. Remove door trim pad, see Front door trim pad.

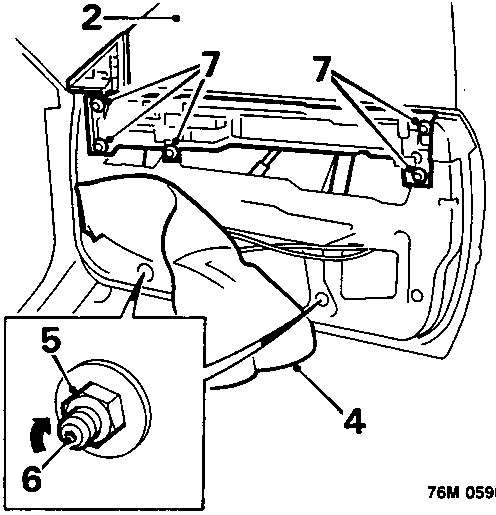

4. Release plastic sheet from door to reveal door cassette fixings.
5. Remove 2 nuts from cassette lower mounting points.
6. Turn alignment studs fully clockwise, using 4mm Allen key.
7. Slacken 5 upper mounting bolts.
