Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual22 · Body
22 · Body & interior

Glass

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Doors › Glass
BodyGlass
Diagram showing waist seal with callout numbers 12, 13 and reference 8RM 1426
  1. Remove front end cap from waist seal.
  2. Remove retainer from end cap and slide clips from waist seal.
  3. Fit clips and end cap to waist seal.

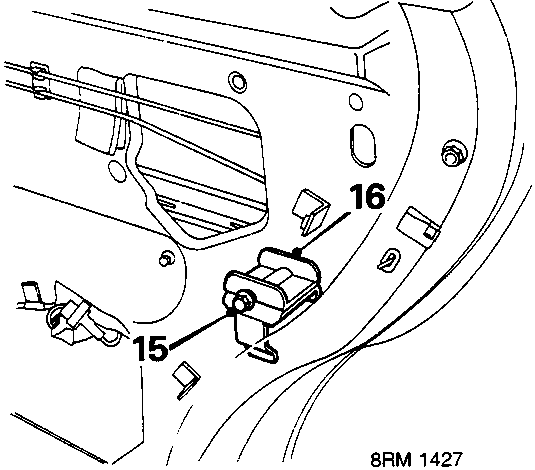

Diagram showing rear channel attachment with callout numbers 15, 16 and reference 8RM 1427
  1. Remove bolt rear channel to door.
  2. Collect spacer.
  3. Slacken nut rear channel to door frame.
  4. Release channel from glass.
  5. Release rubber from rear channel and remove rear channel from door.

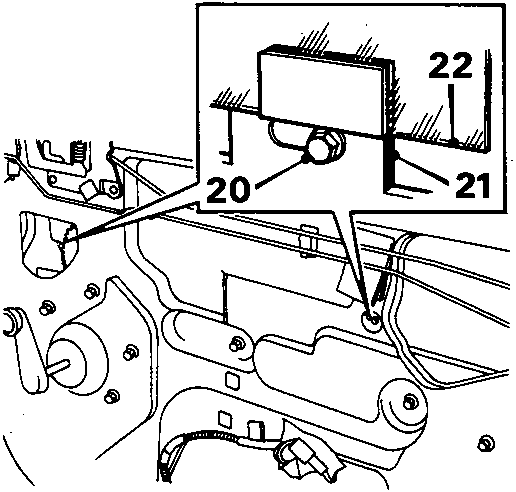

Diagram showing window regulator bolts with callout numbers 20, 21, 22 and reference 8RM 1428
  1. Remove bolts glass to window regulator.

Glass

  1. Release glass from regulator.
  2. Remove glass from door.

Regulator

  1. Release glass from regulator.
  2. Raise glass to top of door door frame and fit wedges to retain glass.

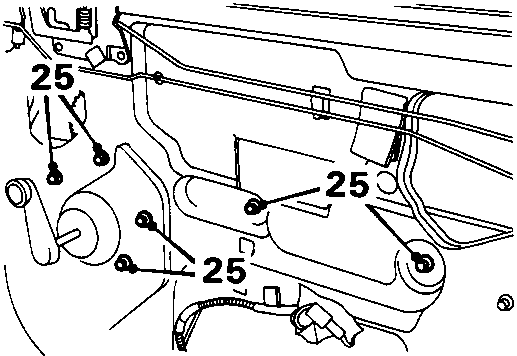

Diagram showing regulator mounting bolts with callout number 25 and reference 8RM 1430
  1. Remove 6 bolts, regulator to door.
  2. Withdraw regulator from door.

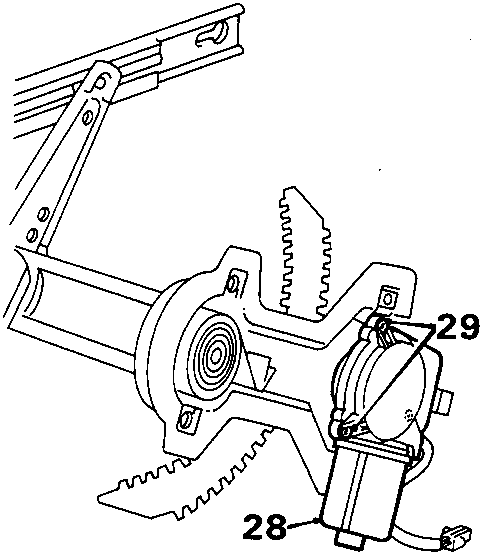

Diagram showing regulator motor and gear with callout numbers 28, 29 and reference 8RM 1431
  1. Drill out 3 rivets, motor to regulator.
  2. Remove motor from regulator.

Waist seal

  1. Remove front end cap from waist seal.
  2. Remove retainer from end cap and slide clips from waist seal.
  3. Fit new clips and end cap to waist seal.
