Remove

Service Repair No. 76.81.50

Remove

1. Lower hood.
2. Remove rear speaker, see ELECTRICAL – Repairs.

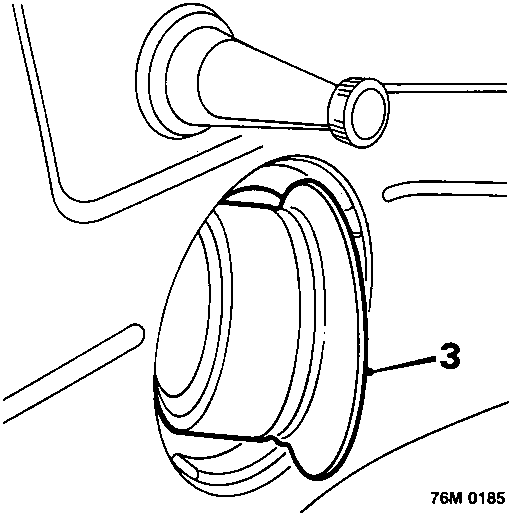

3. Remove speaker splash guard from rear window regulator mounting plate.
4. Wind rear window down approximately 100mm to ease access to glass fixing point.

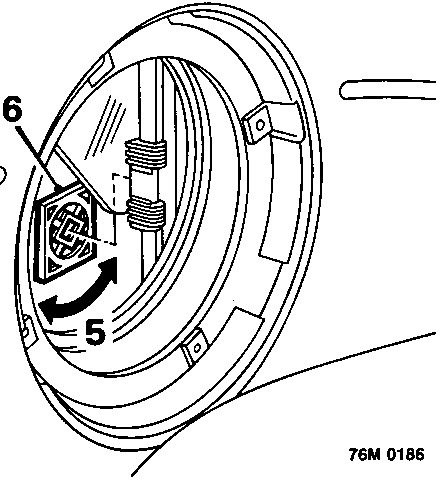

5. Reach through speaker aperture and disengage square locking plate, which secures glass to regulator spigot, by turning through 45°.
6. Remove square locking plate from regulator spigot.

CAUTION: Take care not to drop square locking plate behind rear quarter trim panel.

7. Carefully push on glass around fixing point to disengage glass from regulator spigot.

CAUTION: Do not allow glass to drop into rear quarter once spigot is released.

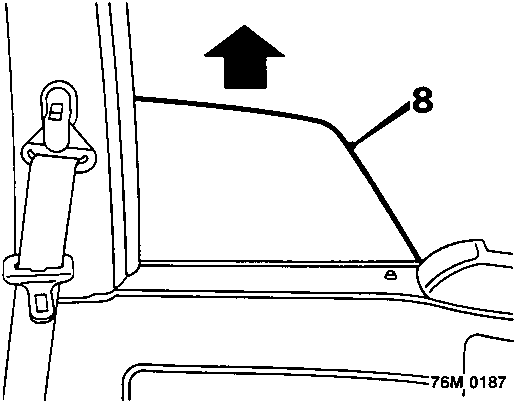

8. Remove glass by sliding it upwards and out through top of forward guide channel.

Refit

1. Locate glass into top of forward guide channel.
2. Feed glass carefully down into both guide channels, ensuring that slider on forward edge of glass locates correctly in forward guide channel.
3. Engage grommet in the glass over the regulator spigot.

CAUTION: Ensure that grommet does not become dislodged from glass during above operation.

4. Fit square locking plate over regulator spigot and secure by turning locking plate through 45°.
5. Fit speaker splash guard.
6. Fit rear speaker, see ELECTRICAL – Repairs.
7. Raise and secure hood.
