Refit

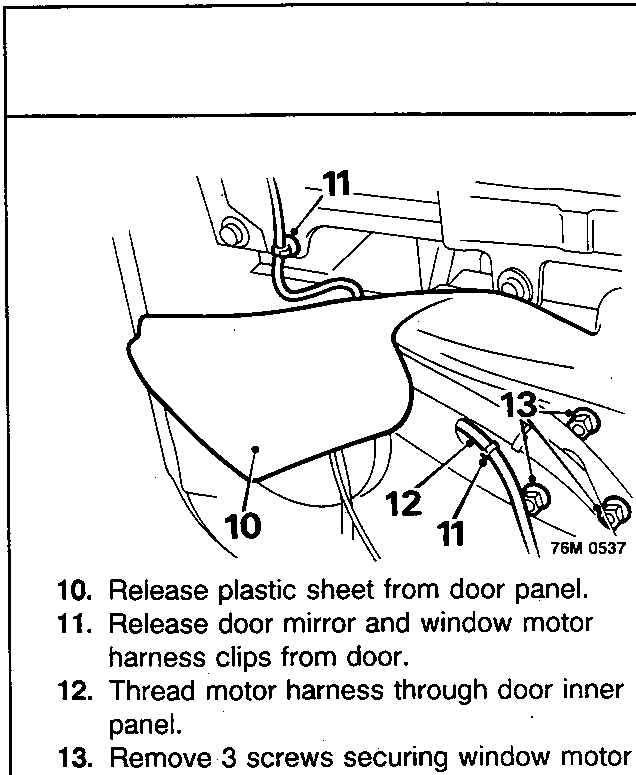

10. Release plastic sheet from door panel.
11. Release door mirror and window motor harness clips from door.
12. Thread motor harness through door inner panel.
13. Remove 3 screws securing window motor and release motor from door.

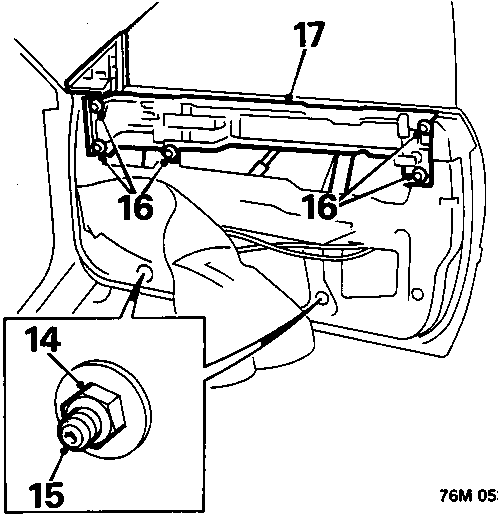

14. Remove 2 nuts from glass cassette lower mounting points.
15. Turn alignment studs fully clockwise, using a 4mm Allen key.
16. Remove 5 bolts from cassette upper mounting points.
17. With assistance, remove cassette assembly from door.

CAUTION: DO NOT lift door cassette using cheater panel as it is set to close tolerances during assembly and may move out of alignment.

Refit

1. With assistance, fit cassette assembly to door.
2. Fit upper mounting bolts, finger tight.
3. Fit nuts to lower mounting points, finger tight.
4. Fit window motor to door and tighten nuts.
5. Adjust door glass to aperture, see Door glass adjustment – Coupe
6. Secure mirror harness clip to door.
7. Route window motor harness through door inner panel and secure harness clip.
8. Fit plastic sheet to door.
9. Secure multiplug clip to door.
10. Fit trim pad bracket and tighten screws.
11. Fit window control unit and tighten screws.
12. Connect multiplugs to window control unit.
13. Fit interior handle, tighten screws and secure cable in clip.
14. Fit door mirror, see Door mirror.
15. Fit door trim pad, see Front door trim pad.
