Doors
BodyRefit · page 2 of 2

Service Repair No. 76.31.03

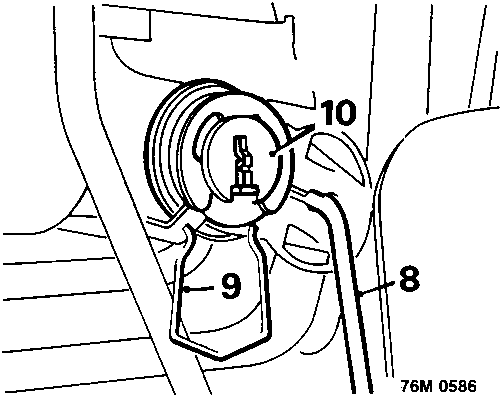

Diagram showing components 8, 9, and 10 of the door lock mechanism

All models

  1. Using a suitable flat bladed screwdriver, release tags securing link rod to private lock.
  2. Release link rod from private lock.
  3. Remove wire clip securing private lock to outside handle.
  4. Remove private lock.

Refit

  1. Fit wire clip to outside handle.
  2. Fit private lock.
  3. Connect link rod to private lock, secure tags.

Central locking

  1. Not Coupé: Route private lock fly – lead behind window rear guide channel.
  2. Secure fly – lead and connector clips to door.
  3. Connect multiplug to fly – lead.

All models

  1. Attach plastic sheet to door.
  2. 4 and 5 door models: Position control unit, if fitted, fit and tighten screws.
  3. Fit door trim pad, see Front door trim pad.

Remove

  1. Raise window fully.
  2. Remove door mirror, see Door mirror.
  3. Remove door trim pad, see Front door trim pad.

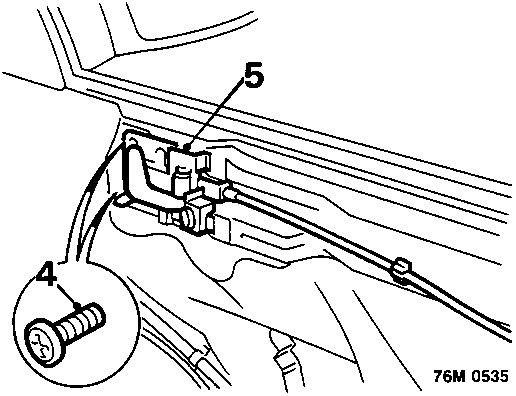

Diagram showing interior handle assembly with callouts 4 and 5
  1. Remove 2 screws securing interior handle to door.
  2. Release handle from door, disengage cable from clip and place handle aside.

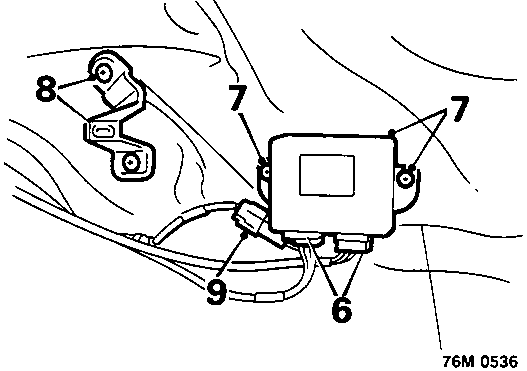

Diagram showing window control unit and trim pad bracket with callouts 6, 7, 8, and 9
  1. Disconnect multiplugs from window control unit.
  2. Remove 2 screws and remove window control unit.
  3. Remove 2 screws and remove trim pad bracket.
  4. Release multiplug clip from door.
