Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual22 · Body
22 · Body & interior

Fuel filler flap release cable (page 2 of 4)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Exterior fittings
BodyFuel filler flap release cable · page 2 of 4

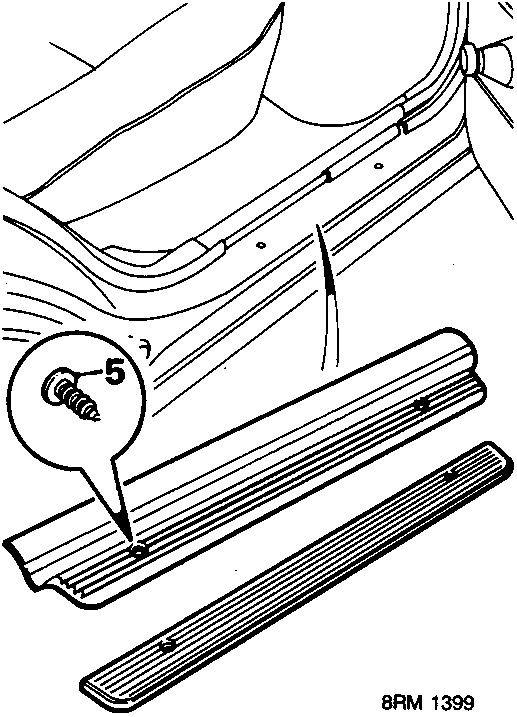

Diagram showing the rear door sill finisher and carpet retainer with a screw labeled 5.
  1. Remove 2 screws, lift rear door sill finisher and carpet retainer, drivers side.

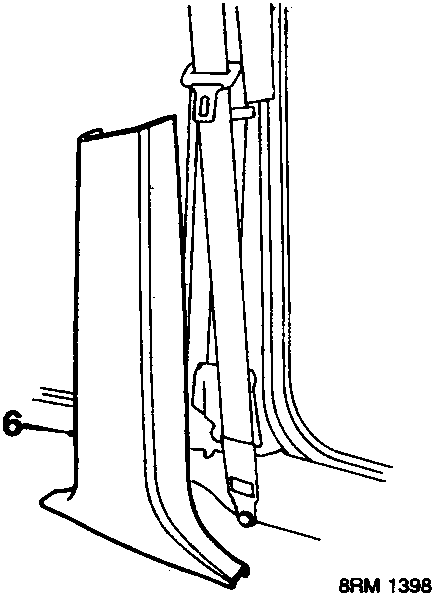

Diagram showing the B/C post lower trim finisher being removed, with a label 6 pointing to the trim.
  1. Remove B/C post lower trim finisher, drivers side.
  2. Remove rear seat cushion.
  3. Remove 3 bolts, rear seat squab to body and remove rear seat squab.
  4. Remove D/E post finisher, drivers side.

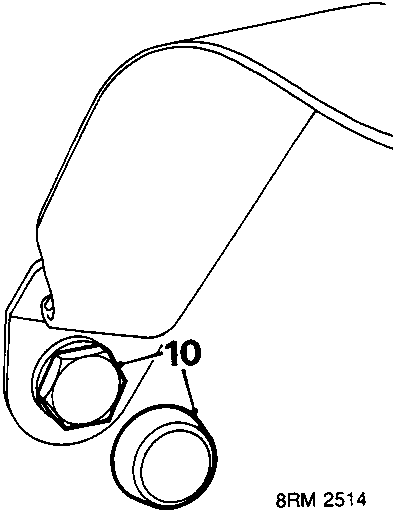

Diagram showing the drivers seat belt lower anchorage with a cover and bolt labeled 10.
  1. Remove cover and bolt from drivers seat belt lower anchorage.

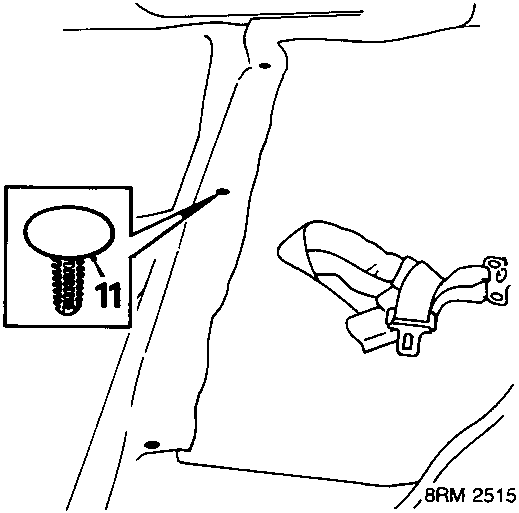

Diagram showing the rear section of floor carpet with studs labeled 11 securing it, and a seat belt buckle visible.
  1. Remove 3 studs securing rear section of floor carpet and fold carpet forward to gain access to cable.
  2. Open luggage compartment lid.

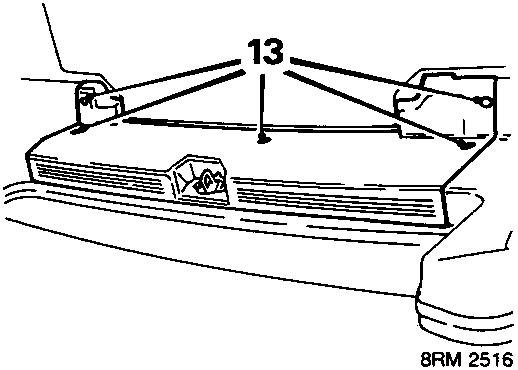

Diagram showing the luggage compartment finisher with 5 screws labeled 13.
  1. Remove 5 screws, luggage compartment finisher to body, and remove finisher.
  2. Remove luggage compartment carpet.
