Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual22 · Body
22 · Body & interior

Fuel filler flap release cable (page 3 of 4)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Exterior fittings
BodyFuel filler flap release cable · page 3 of 4

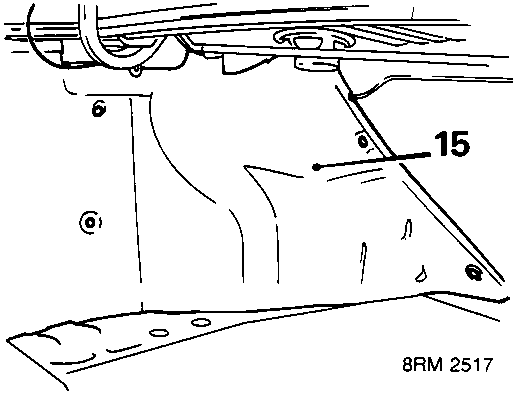

Diagram showing luggage compartment side trim casing with callout 15
  1. Remove luggage compartment side trim casing, passengers side.

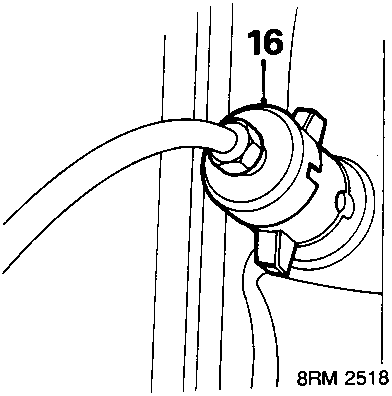

Diagram showing fuel filler cable release from housing with callout 16
  1. Fuel filler cable: Release cable assembly from fuel filler housing.

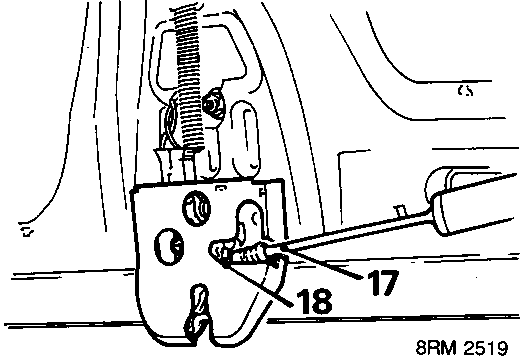

Diagram showing luggage compartment lid lock mechanism with callouts 17 and 18

Luggage compartment lid cable

  1. Release cable from abutment on lock.
  2. Release inner cable from lock lever.

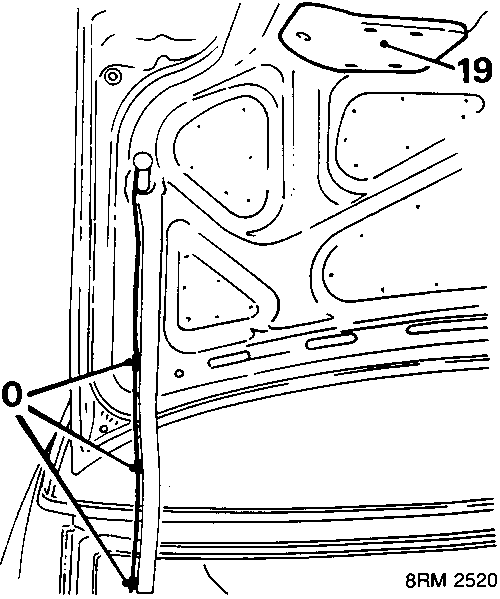

Diagram showing access cover and cable clips on luggage compartment lid with callouts 19 and 20
  1. Remove access cover from luggage compartment lid.
  2. Release cable from clips and ties on luggage compartment lid hinge.
  3. Tie a cord to the cable at the lid lock end and pull cable out of lid, drawing cord through lid for use when fitting cable. Remove cord from cable.

Both cables

  1. Pull cable through rear seat squab panel and remove tape securing cable to rear seat pan.
  2. Release cable from behind wiring harness.
