Air conditioning
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Wiring diagrams › Air conditioning
‹ Prev Location of components - Air conditioning (1905 D - 1905 TD)Next › Location of components - Air conditioning
55 Electrical equipmentAir conditioning

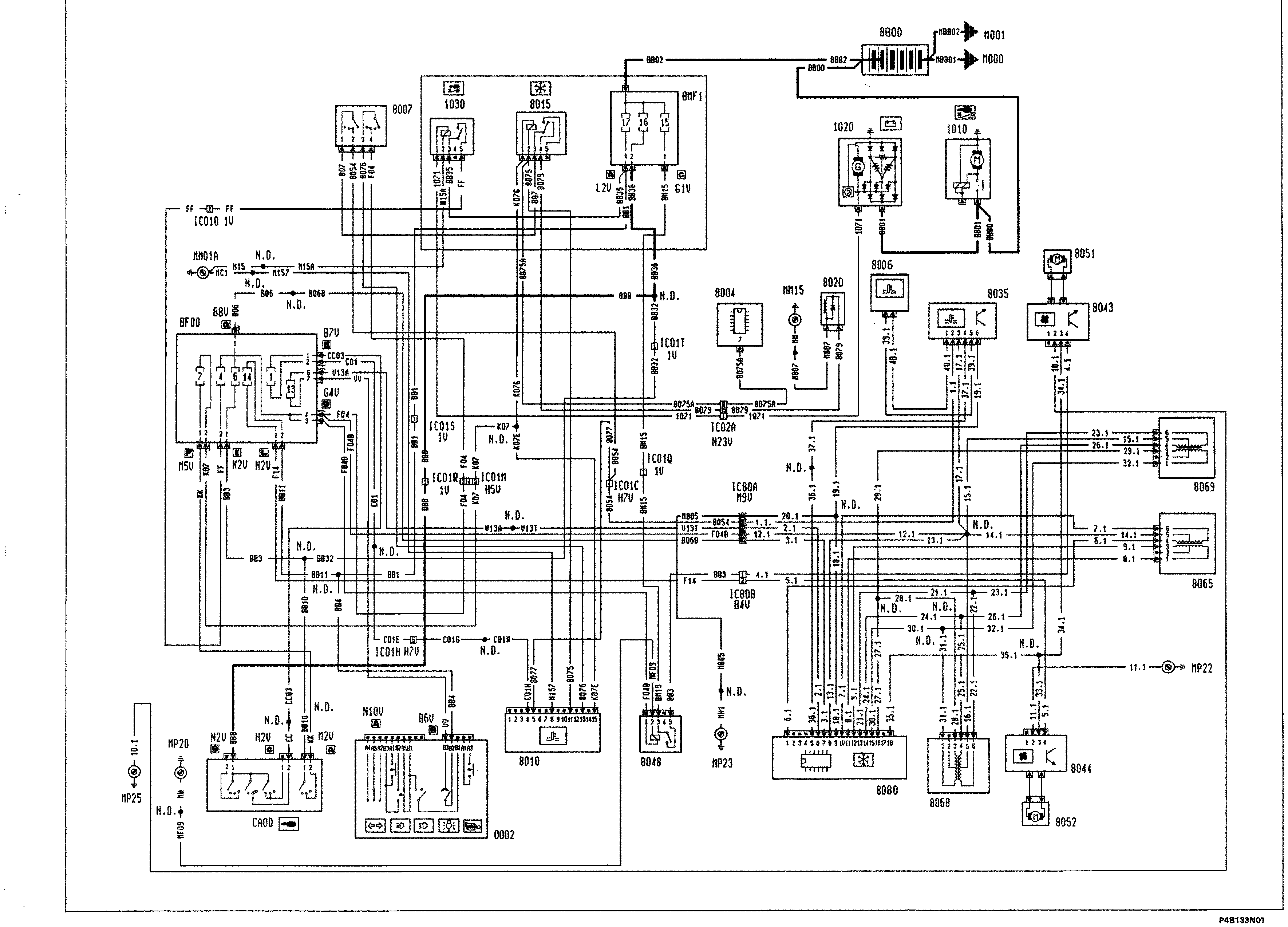

Air conditioning – diagram from the 55 Electrical equipment chapter of the Fiat Scudo Factory Service Manual (1996-2006) factory manual.
