55 Electrical equipmentLocation of components on vehicle - Pre-tensioners

Location of components on vehicle - Pre-tensioners

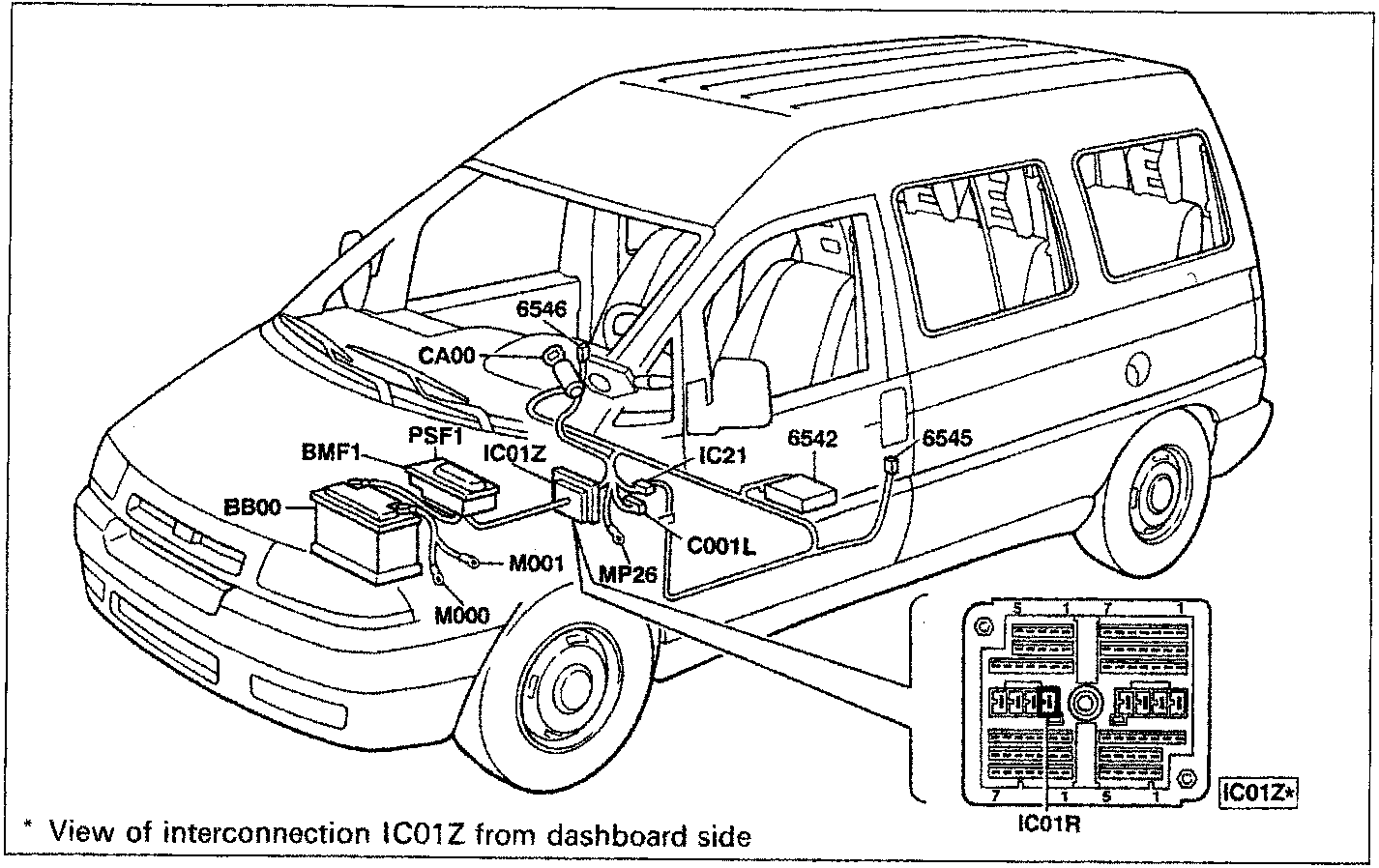

Line drawing of a Scudo vehicle showing the locations of electrical components including the battery, fuse control unit, ignition switch, junction unit, pre-tensioners electronic control unit, and pre-tensioners. An inset shows the interconnection IC01Z from the dashboard side.

* View of interconnection IC01Z from dashboard side

Components key

  • BB00 Battery
  • BMF1 Maxi fuse control unit
  • CA00 Ignition switch
  • PSF1 Junction unit (engine compartment)
  • 6542 Pre-tensioners electronic control unit
  • 6545 Driver's side pre-tensioner
  • 6546 Passenger side pre-tensioner

Connections key

  • C001A Diagnostic cables connection
  • C001L Diagnostic socket
  • IC01A Connection between main cables and dashboard cables
  • IC01Z Interconnection between main cables and dashboard cables
  • IC21 Connection between dashboard cables and pre-tensioner cables

Earth key

  • MP26 Air-bag/pre-tensioners earth
  • M000 Battery earth
  • M001 Battery earth

N.D. Ultrasound welding taped in cable loom
