Coded anti-starting device
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Wiring diagrams › Coded anti-starting device
‹ Prev Location of components on vehicle - Coded anti-startingNext › Location of components on vehicle - Coded anti-starting diesel
55 Electrical equipmentCoded anti-starting device

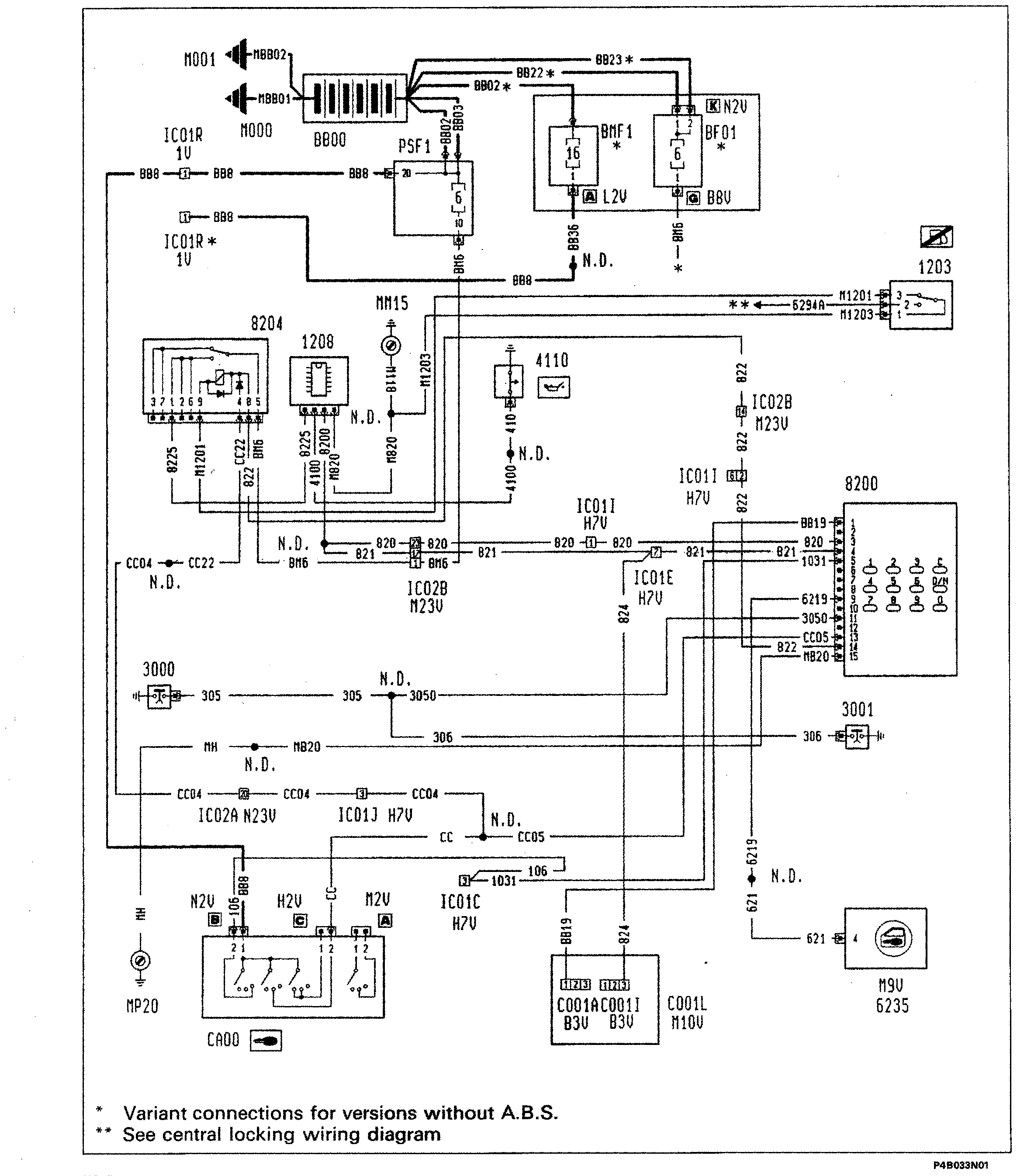

Coded anti-starting device – diagram from the 55 Electrical equipment chapter of the Fiat Scudo Factory Service Manual (1996-2006) factory manual.
Coded anti-starting device
* Variant connections for versions without A.B.S.
** See central locking wiring diagram
