Central locking
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Wiring diagrams › Central locking
‹ Prev Location of components - Fuel level gauge and reserve warning light - Water temperature gauge and overheating warning liNext › Location of components - Central locking

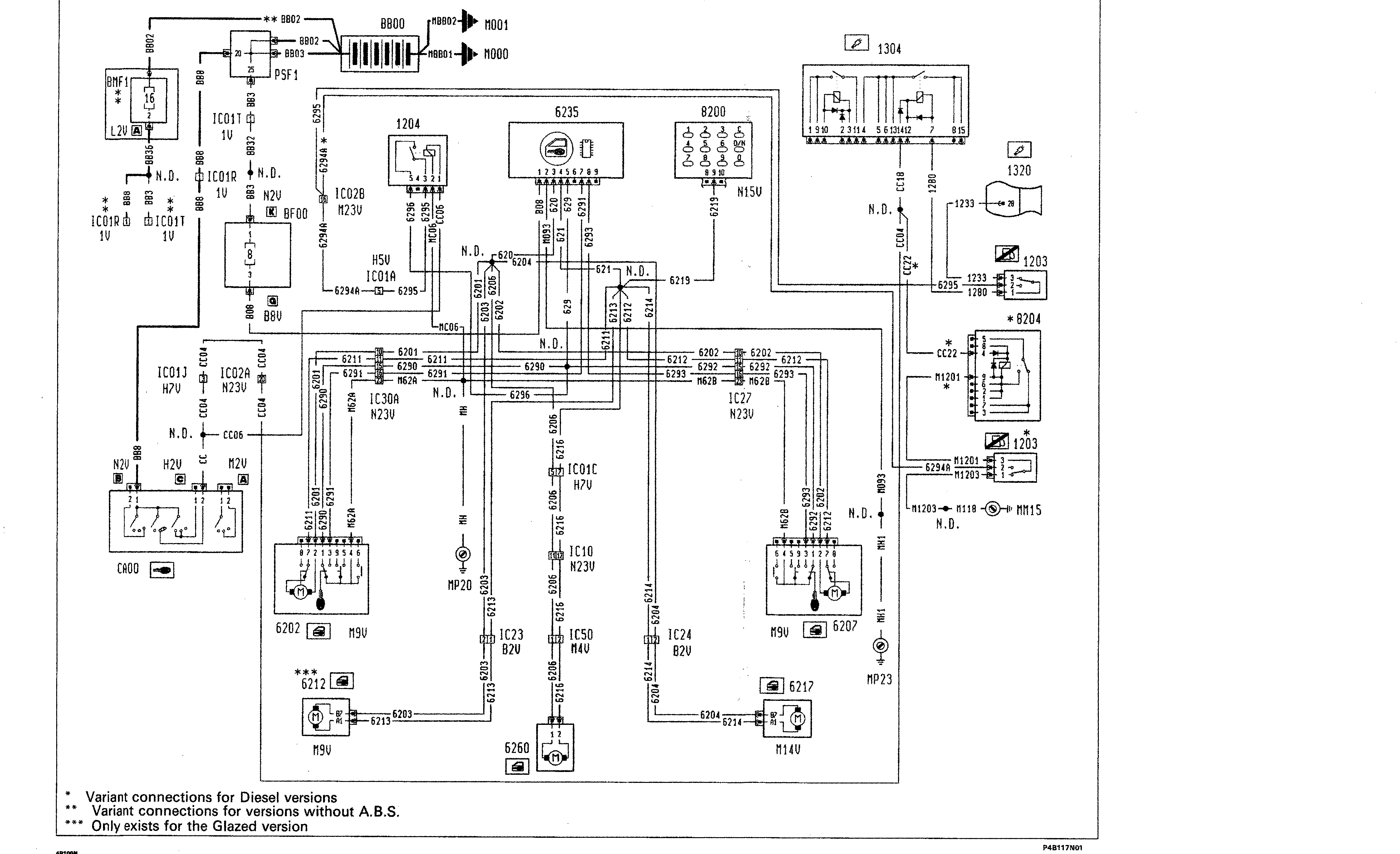

55 Electrical equipmentCentral locking
Central locking
* Variant connections for Diesel versions
** Variant connections for versions without A.B.S.
*** Only exists for the Glazed version
‹ Prev Location of components - Fuel level gauge and reserve warning light - Water temperature gauge and overheating warning liNext › Location of components - Central locking
