55 Electrical equipmentJunction unit in dashboard BF00

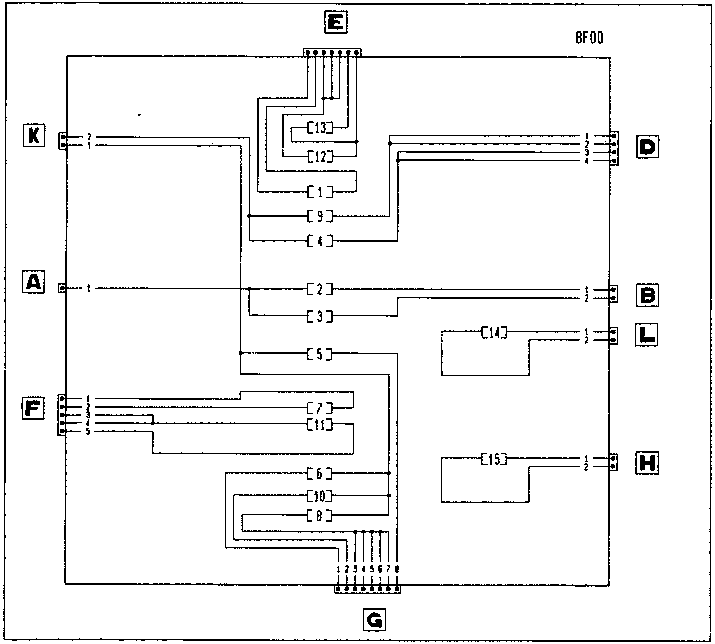

Junction unit in dashboard BF00
Fuse 1 10A
Fuse 2 25A
Fuse 3 25A
Fuse 4 10A
Fuse 5 30A
Fuse 6 5A
Fuse 7 5A
Fuse 8 20A
Fuse 9 20A
Fuse 10 10A
Fuse 11 5A
Fuse 12 5A
Fuse 13 5A
Fuse 14 30A
Fuse 15 30A
