Explanation of how to read wiring diagrams

Make

Fiat

Model

Scudo Factory Service Manual

Year

1996–2006

Section

Wiring diagrams › Explanation of how to read wiring diagrams

55 Electrical equipmentExplanation of how to read wiring diagrams

Explanation of how to read wiring diagrams

View full sizeFit to page

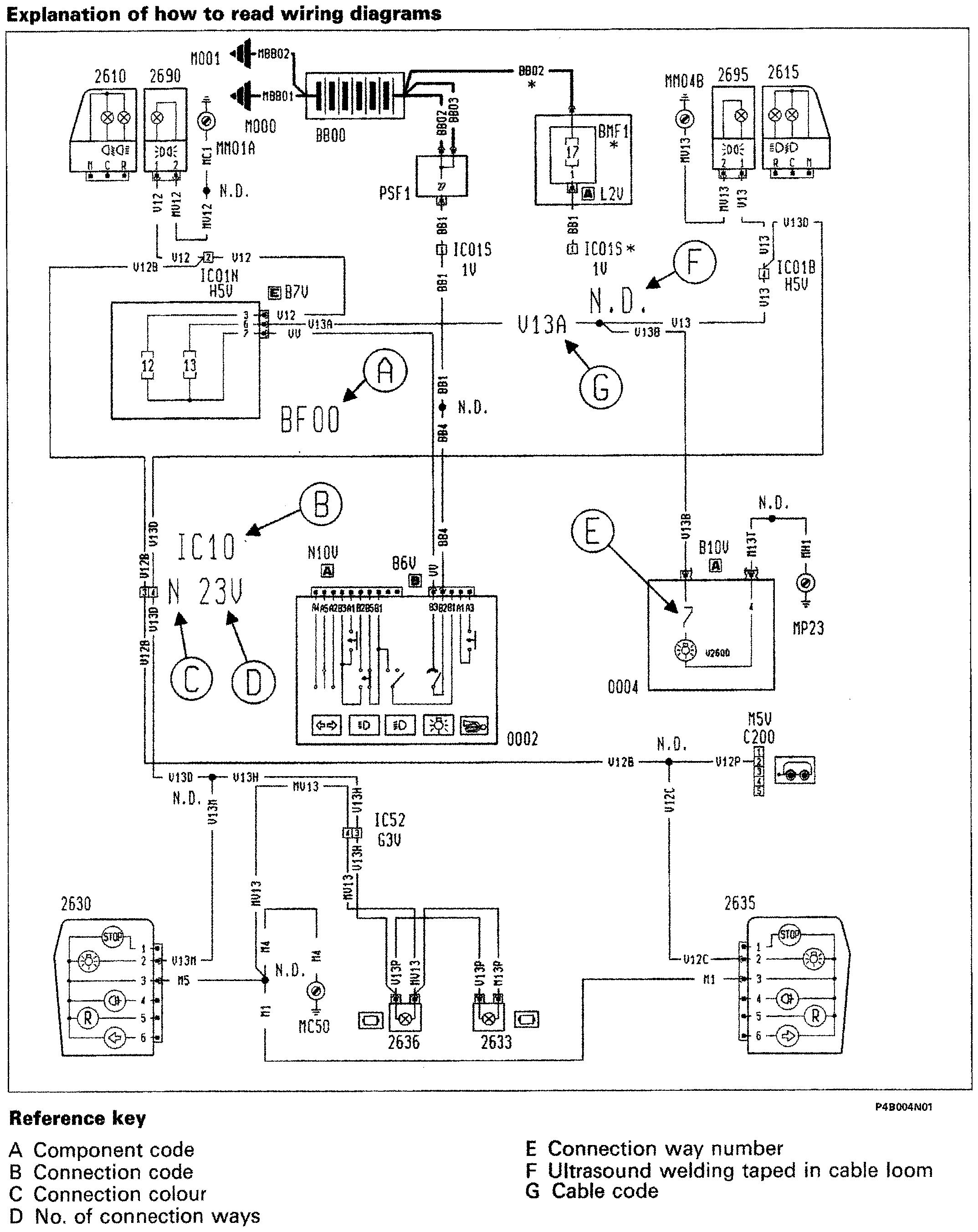

Reference key

A Component code

B Connection code

C Connection colour

D No. of connection ways

E Connection way number

F Ultrasound welding taped in cable loom

G Cable code

06 Electrical
