Panel connections (1581)
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Wiring diagrams › Panel connections (1581)
55 Electrical equipmentPanel connections (1581)
Panel connections (1581)

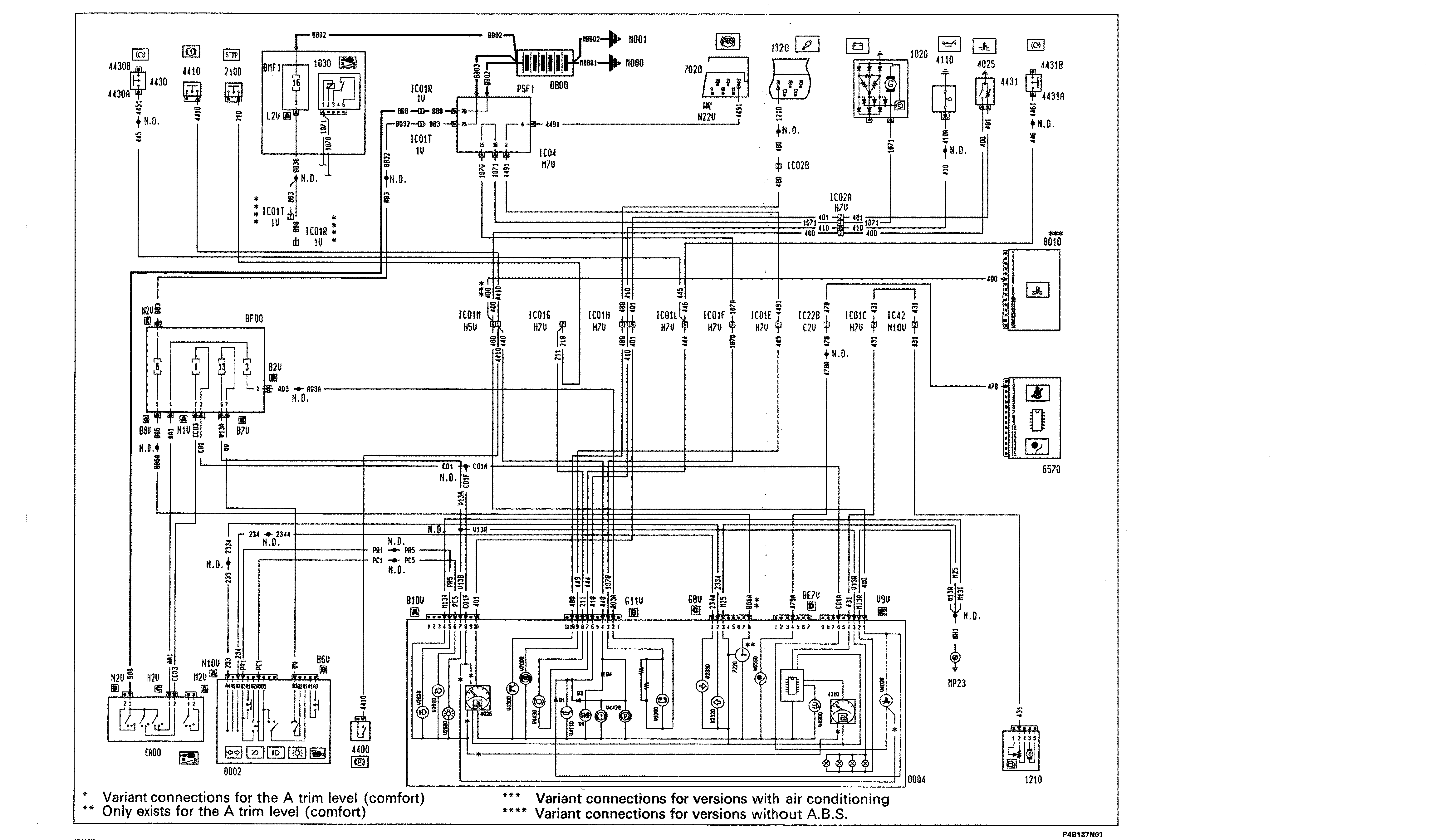

Panel connections - (See key at end of wiring diagrams)
- Variant connections for the A trim level (comfort)
- Only exists for the A trim level (comfort)
- Variant connections for versions with air conditioning
- Variant connections for versions without A.B.S.
