Location of cable loom in dashboard
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Wiring diagrams › Location of cable loom in dashboard
‹ Prev Location of complete cable loom on vehicle (1905 D - 1905 Turbo D)Next › Location of cable loom in dashboard
55 Electrical equipmentLocation of cable loom in dashboard

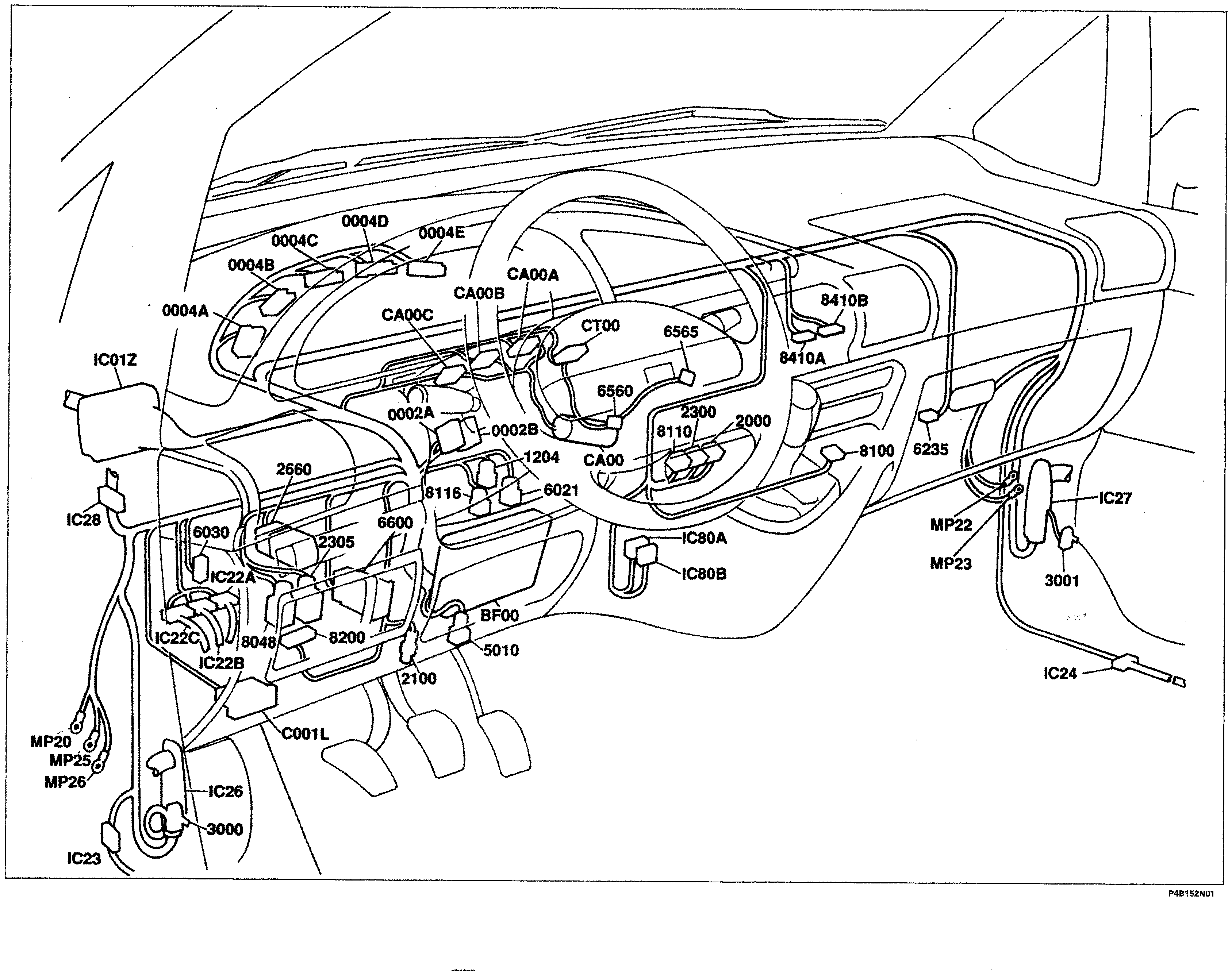

Location of cable loom in dashboard – diagram from the 55 Electrical equipment chapter of the Fiat Scudo Factory Service Manual (1996-2006) factory manual.
