55 Electrical equipmentJunction unit in engine compartment PSF1

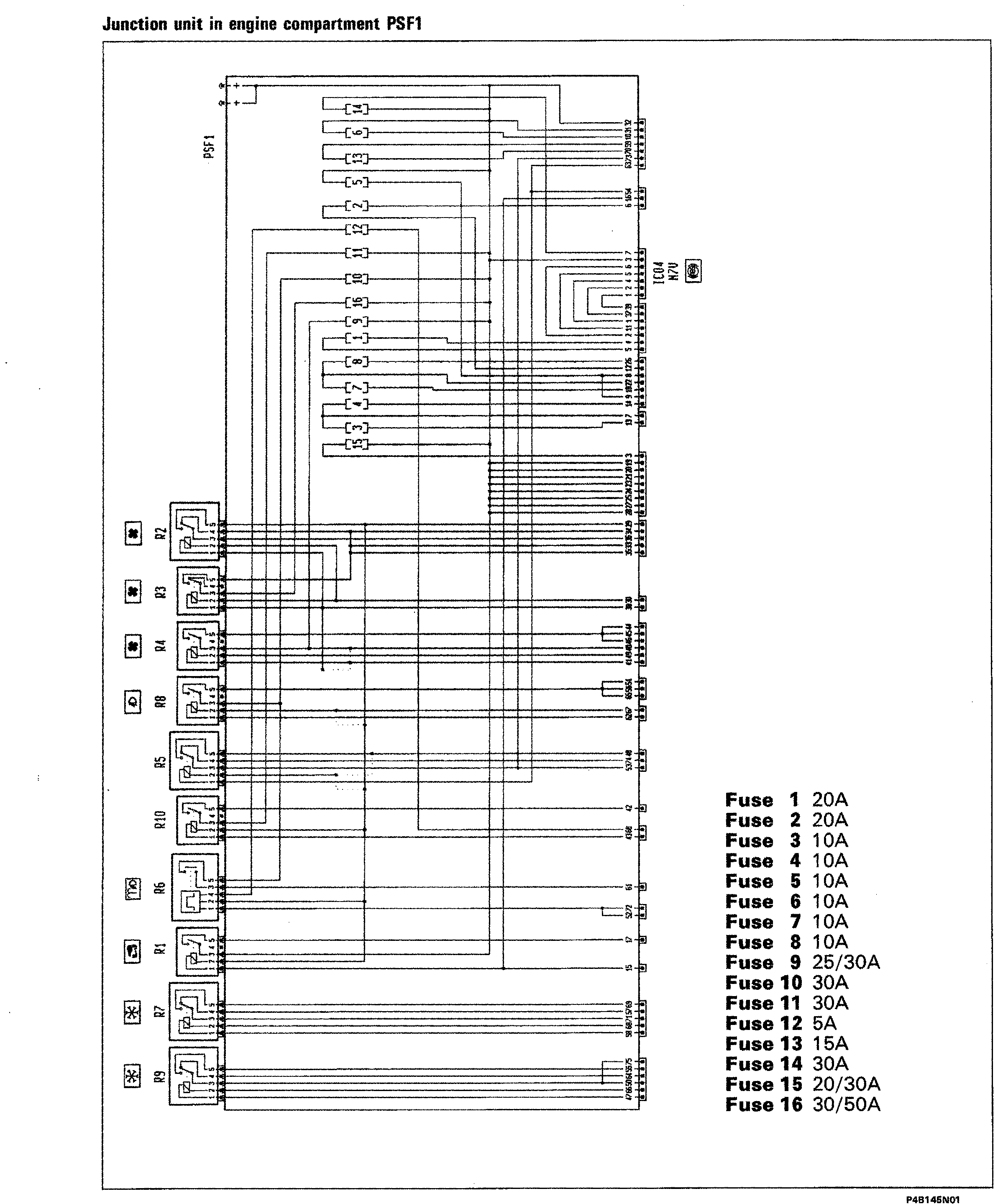

Junction unit in engine compartment PSF1

View full sizeFit to page

1. Fuse 1 20A
2. Fuse 2 20A
3. Fuse 3 10A
4. Fuse 4 10A
5. Fuse 5 10A
6. Fuse 6 10A
7. Fuse 7 10A
8. Fuse 8 10A
9. Fuse 9 25/30A
10. Fuse 10 30A
11. Fuse 11 30A
12. Fuse 12 5A
13. Fuse 13 15A
14. Fuse 14 30A
15. Fuse 15 20/30A
16. Fuse 16 30/50A
