55 Electrical equipmentDiagnostic sockets - Additional repair cables

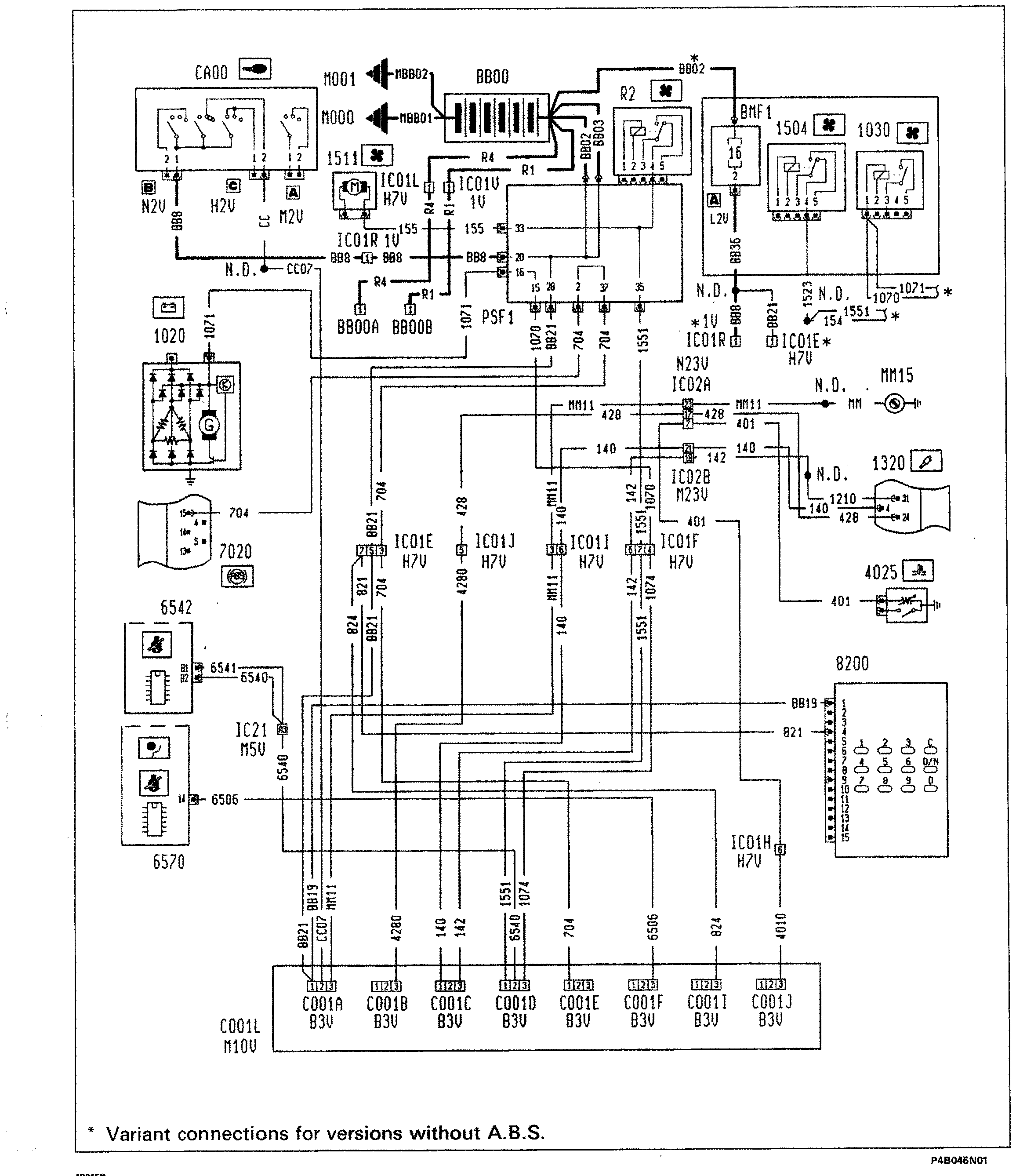

Diagnostic sockets - Additional repair cables – diagram from the 55 Electrical equipment chapter of the Fiat Scudo Factory Service Manual (1996-2006) factory manual.
Diagnostic sockets - Additional repair cables
* Variant connections for versions without A.B.S.
