Headlamp alignment device - Radio
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Wiring diagrams › Headlamp alignment device - Radio
‹ Prev Location of components on vehicle - Electric front windowsNext › Location of components on vehicle - Headlamp alignment device - Radio
55 Electrical equipmentHeadlamp alignment device - Radio

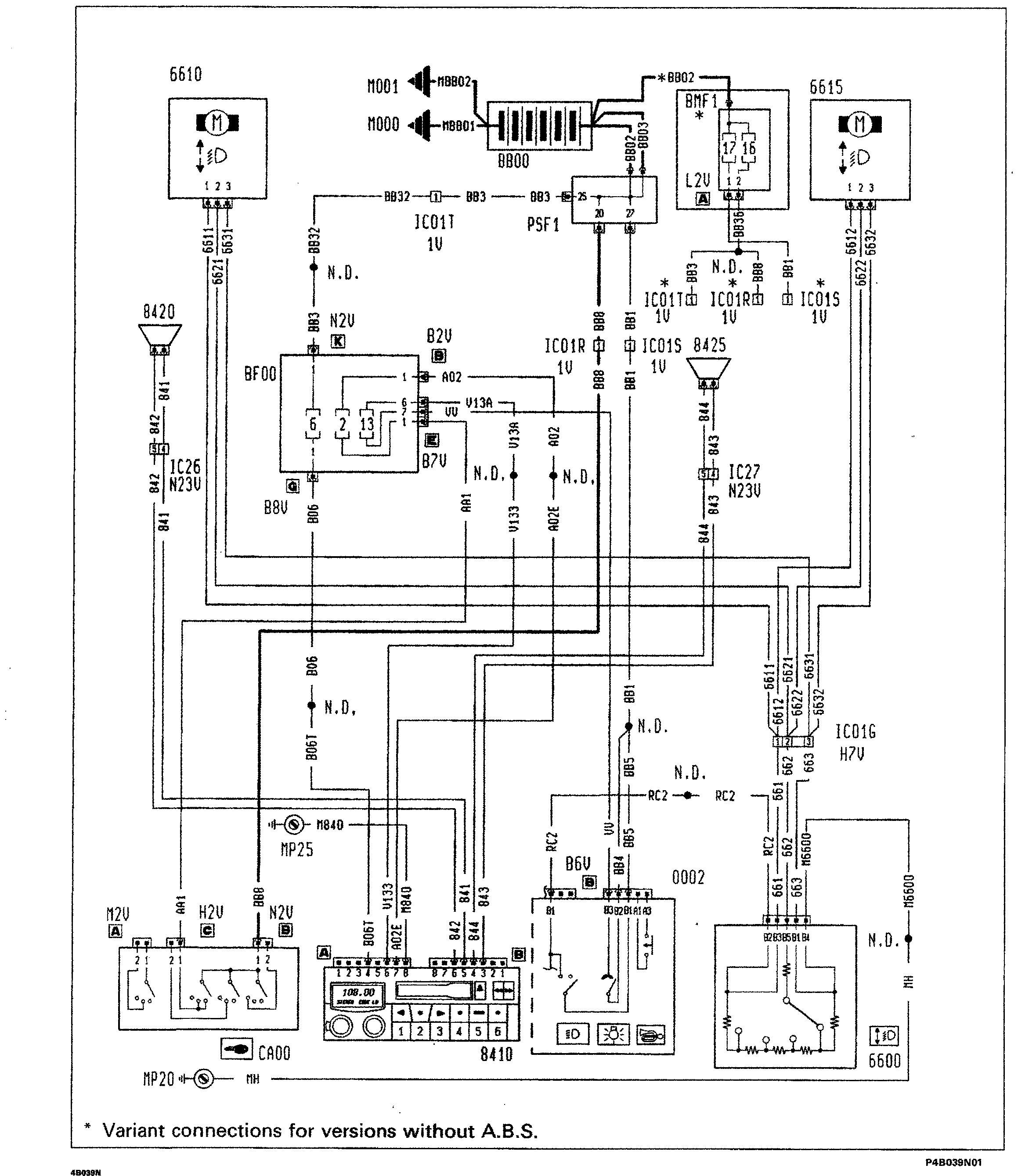

Headlamp alignment device - Radio – diagram from the 55 Electrical equipment chapter of the Fiat Scudo Factory Service Manual (1996-2006) factory manual.
Headlamp alignment device - Radio
* Variant connections for versions without A.B.S.
