Location of components - Air conditioning

Location of components - Air conditioning

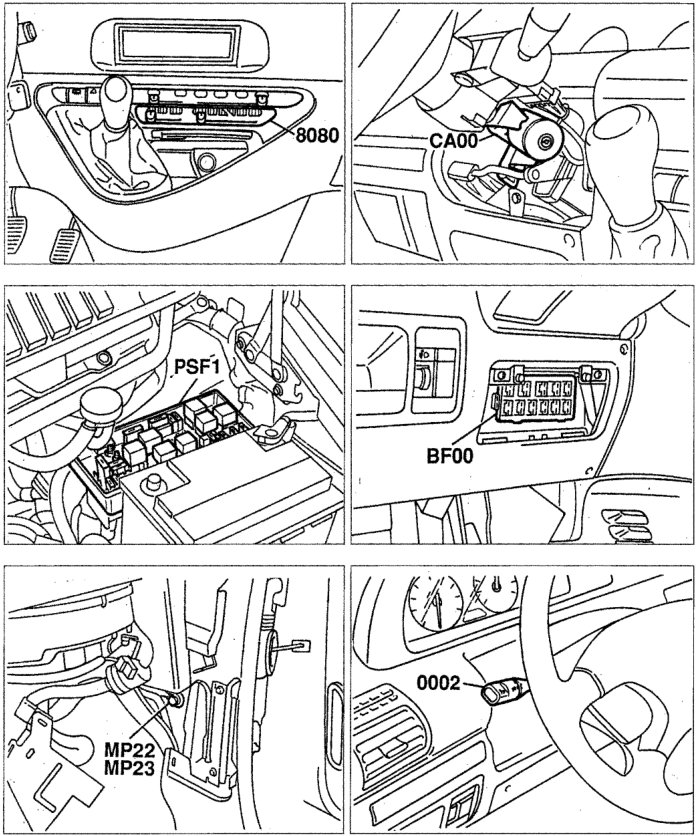

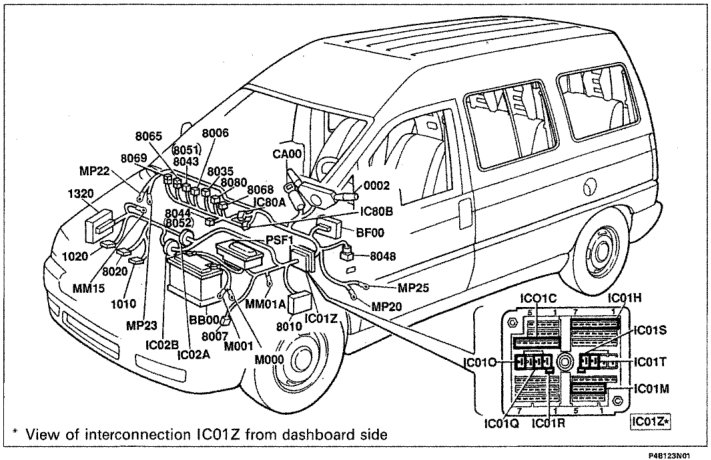

* View of interconnection IC01Z from dashboard side

Components key

BB00 Battery
BF00 Junction unit (vehicle interior)
CA00 Ignition switch
PSF1 Junction unit (engine compartment)
R1 Ignition discharge relay
R7 Compressor disengagement switch (from in-
jection system control unit)
R9 Compressor disengagement switch (from
engine cooling control unit, Bitron)

0002 Steering column switch unit
1010 Starter motor
1020 Alternator
1320 Injection/ignition control unit
8006 Evaporation temperature sensor
8007 Three stage pressure switch
8010 Cooling system electronic control unit
8020 Compressor
8035 Passenger comp. electronic temp. thermostat
8043 Right heater fan control module
8044 Left heater fan control module
8048 Heating/air conditioning relay
8051 Right heater fan
8052 Left heater fan
8065 Mixed air motor
8068 Left air intake flap motor
8069 Right intake air flap motor
8080 Climate control system control unit

Connections key

IC01C Connection btwn main & dashboard cables
IC01H Connection btwn main & dashboard cables
IC01M Connection btwn main & dashboard cables
IC01O Connection btwn main & dashboard cables
IC01Q Connection btwn main & dashboard cables
IC01R Connection btwn main & dashboard cables
IC01S Connection btwn main & dashboard cables
IC01Z Interconnection between main cables
and dashboard cables
IC01T Connection btwn main & dashboard cables
IC02A Connection btwn main & engine cables
IC02B Connection btwn main & engine cables
IC80A Connection between dashboard cables and
air conditioning/heater cables
IC80B Connection between dashboard cables and
air conditioning/heater cables

Earth key

MM01A Left front earth
MM15 Earth on engine
MP20 Earth on dashboard, left
MP22 Earth on dashboard, right
MP23 Earth on dashboard, right
MP25 Earth on dashboard, left
M000 Battery earth
M001 Battery earth

N.D. Ultrasound welding taped in cable loom
