Location of components - Central locking

Location of components - Central locking

55.

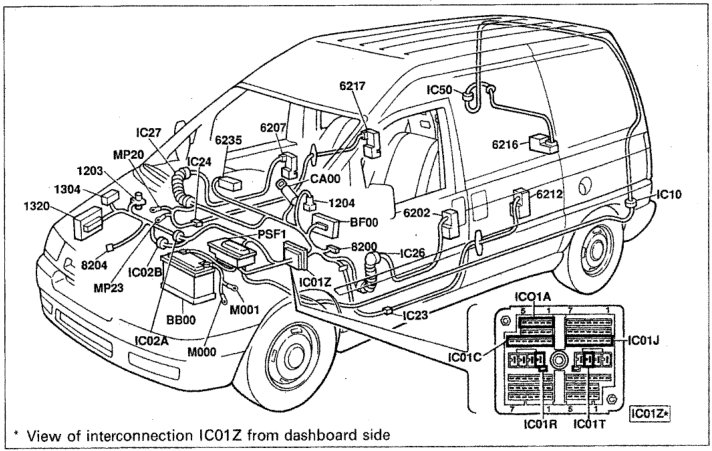

Location of components on vehicle -

Components key

• BB00 Battery
• BF00 Junction unit (vehicle interior)
• BMF1 Maxi fuse control unit
• CA00 Ignition switch

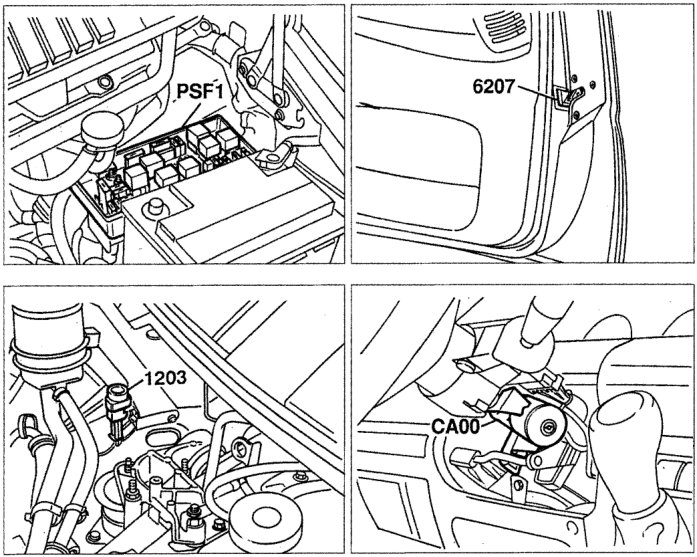

• PSF1 Junction unit (engine compartment)
• 1203 Inertia switch
• 1204 Inertia switch relay feed
• 1304 Multiple relay
• 1320 Injection/ignition control unit
• 6202 Left front door lock assembly
• 6207 Right front door lock assembly
• 6212 Left rear door lock assembly
• 6216 Rear tailgate locking/unlocking motor
• 6217 Right rear door lock assembly

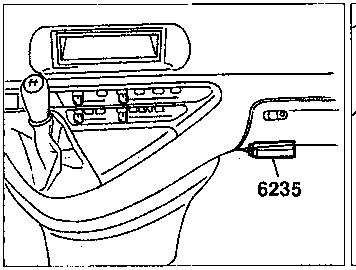

• 6235 Central locking electronic control unit

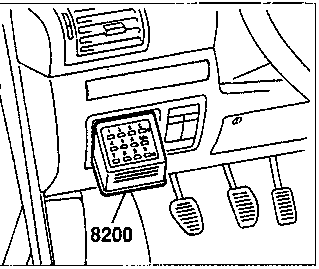

• 8200 Coded anti-starting control panel
• 8204 Diesel injection pump relay feed

Connections key

• IC01A Connection btwn main & dashboard cables
• IC01C Connection btwn main & dashboard cables
• IC01R Connection btwn main & dashboard cables
• IC01T Connection btwn main & dashboard cables
• IC01Z Interconnection between main cables and dashboard cables
• IC01J Connection btwn main & dashboard cables
• IC02A Connection btwn main & engine cables
• IC02B Connection btwn main & engine cables
• IC10 Connection between front and rear cables
• IC23 Connection between dashboard cables and left longitudinal cables
• IC24 Connection between dashboard cables and right longitudinal cables
• IC27 Connection between dashboard cables and right front door cables
• IC30A Connection between door cables and left front door cable
• IC50 Connection between front and rear cables

Earth key

• MM15 Earth on engine
• MP20 Earth on dashboard, left
• MP23 Earth on dashboard, right
• M000 Battery earth
• M001 Battery earth

N.D. Ultrasound welding taped in cable loom
