Petrol versions
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Wiring diagrams › Petrol versions
‹ Prev Location of components on vehicle - Windscreen wash/wipe - HornNext › Location of components on vehicle - Coded anti-starting
55 Electrical equipmentPetrol versions
Petrol versions

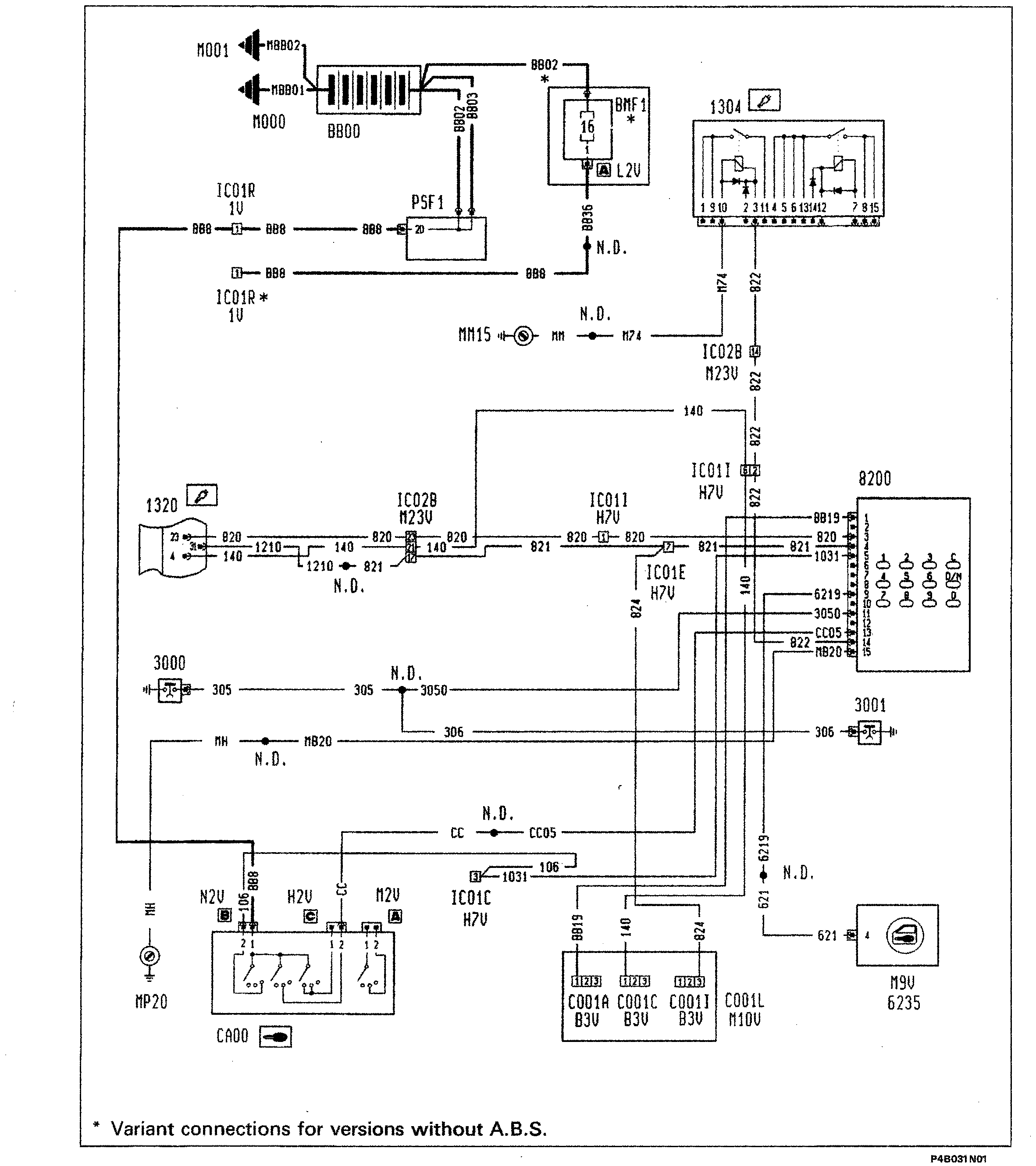

Coded anti-starting device - (See key at end of wiring diagrams)
* Variant connections for versions without A.B.S.
