Air conditioning (1995 D - 1905 Turbo D)
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Wiring diagrams › Air conditioning (1995 D - 1905 Turbo D)
‹ Prev Location of components - Air conditioning (1581 without A.B.S)Next › Location of components - Air conditioning (1905 D - 1905 TD)
55 Electrical equipmentAir conditioning (1995 D - 1905 Turbo D)

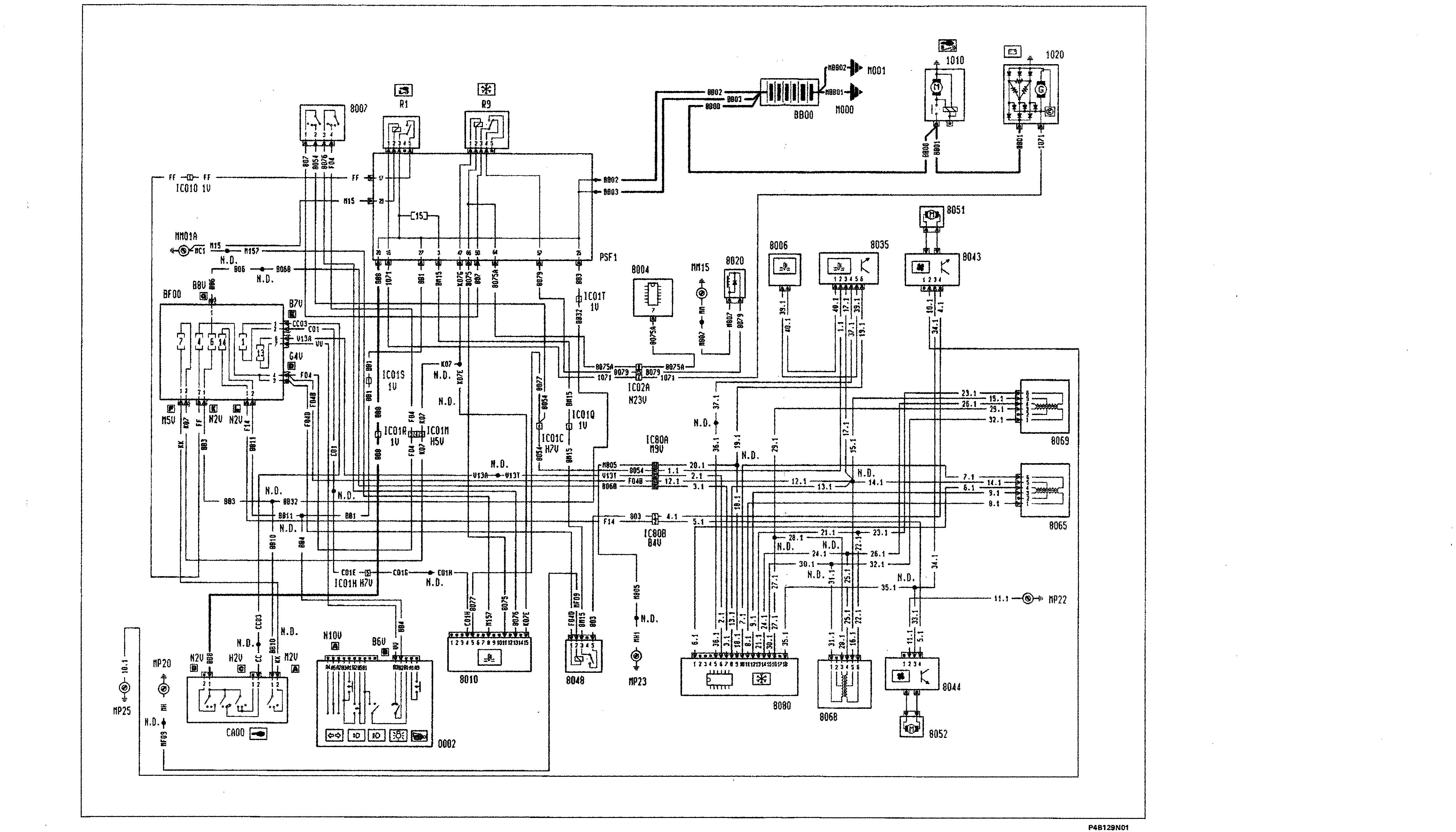

Air conditioning (1995 D - 1905 Turbo D) – diagram from the 55 Electrical equipment chapter of the Fiat Scudo Factory Service Manual (1996-2006) factory manual.
Air conditioning (1995 D - 1905 Turbo D)
Air conditioning - (See key at end of wiring diagrams)
