Air conditioning (1581)
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Wiring diagrams › Air conditioning (1581)
55 Electrical equipmentAir conditioning (1581)

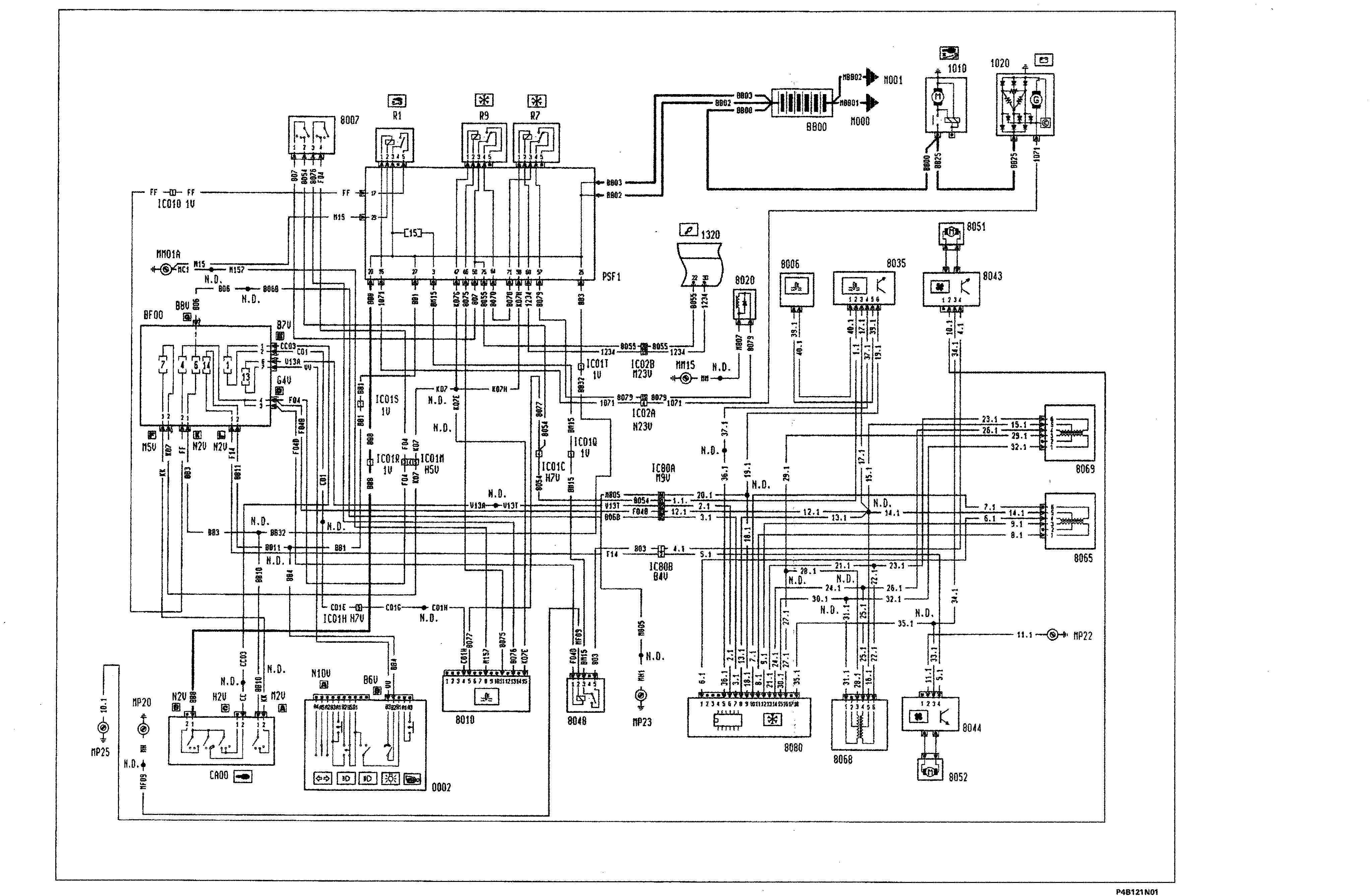

Air conditioning (1581) – diagram from the 55 Electrical equipment chapter of the Fiat Scudo Factory Service Manual (1996-2006) factory manual.
Air conditioning (1581)
Air conditioning - (See key at end of wiring diagrams)
