Engine cooling fan (without air conditioning)
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Wiring diagrams › Engine cooling fan (without air conditioning)
‹ Prev Location of components on vehicle - Braking - Reverse - Brake pad wearNext › Location of components on vehicle - Engine cooling fan without air conditioning
55 Electrical equipmentEngine cooling fan (without air conditioning)

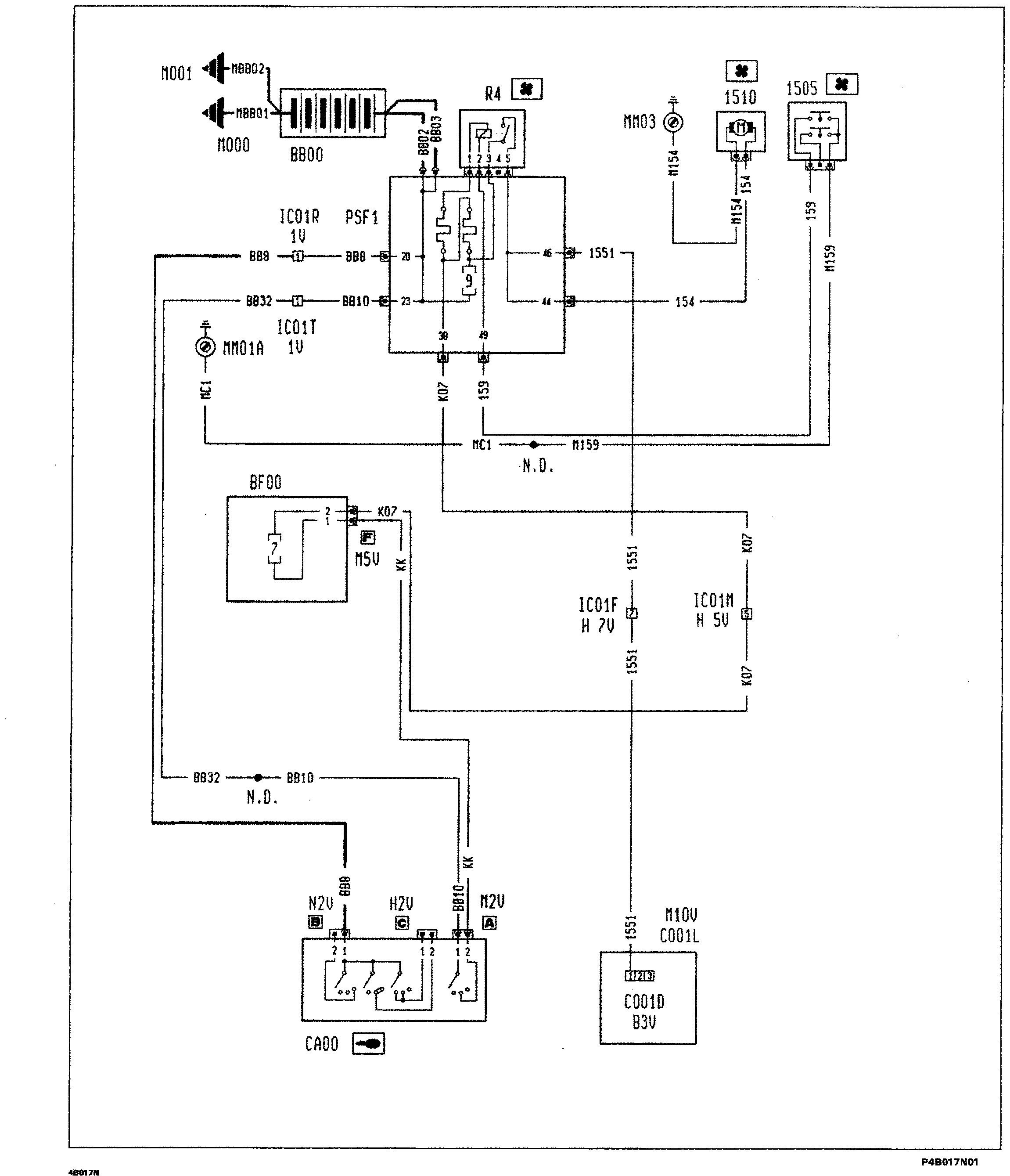

Engine cooling fan (without air conditioning) – diagram from the 55 Electrical equipment chapter of the Fiat Scudo Factory Service Manual (1996-2006) factory manual.
Engine cooling fan (without air conditioning)
Engine cooling fan - (See key at end of wiring diagrams)
