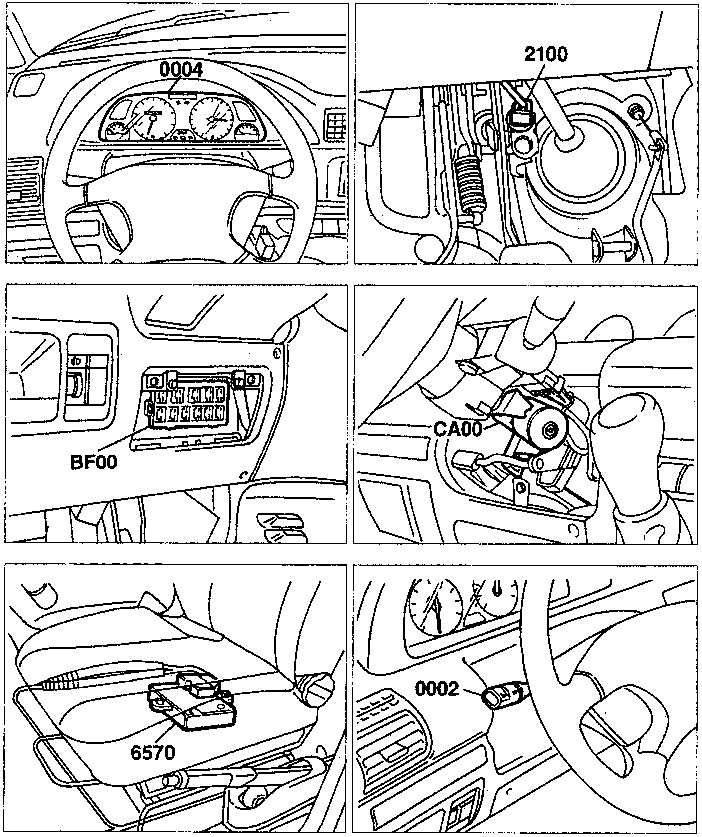

Location of components - Panel connections

Location of components - Panel connections

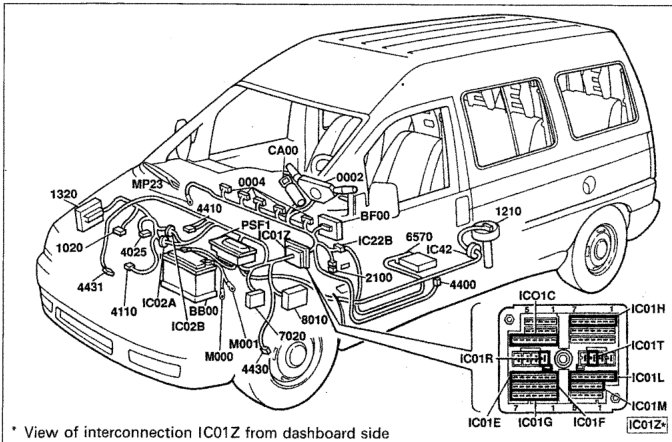

* View of interconnection IC01Z from dashboard side

Components key

• BB00 Battery
• BF00 Junction unit (vehicle interior)
• BMF1 Maxi fuse control unit
• CA00 Ignition switch
• PSF1 Junction unit (engine compartment)
• 0002 Steering column switch unit
• 0004 Instrument panel
• V4 Brake lights failure warning light
• V1000 Battery recharging warning light
• V1150 Heater plugs warning light
• V1300 Injection system failure warning light
• V2320 Left direction indicator warning light
• V2330 Right direction indicator warning light
• V2600 Side lights warning light
• V2610 Dipped headlamps warning light
• V2660 Rear fog lamps warning light
• V4020 Engine coolant overheating warning light
• V4050 Water in fuel filter warning light
• V4110 Insufficient engine oil pressure warning light
• V4300 Fuel reserve warning light
• V4430 Brake pad wear warning light
• V4440 Bulb failure warning light
• V4730 Seat belts not fastened warning light
• V6560 AIR-RAS circuit failure warning light
• 1020 Alternator
• 1030 Ignition discharge relay
• 1210 Fuel pump
• 1320 Injection/ignition control unit
• 2100 Brake lights control unit
• 4025 Coolant temperature sensor
• 4026 Engine coolant temperature gauge
• 4110 Oil pressure singe contact
• 4310 Fuel level gauge
• 4400 Switch signalling handbrake applied
• 4410 Switch signalling insufficient brake fluid level
• 4430 Left front brake pad wear sensor
• 4431 Right front brake pad wear sensor
• 6570 Air-bag / pre-tensioners control unit
• 7020 Anti-lock brakes electronic control unit
• 7220 Digital clock
• 8010 Engine cooling system electronic control unit

Connections key

• IC01C Connection btwn main & dashboard cables
• IC01E Connection btwn main & dashboard cables
• IC01F Connection btwn main & dashboard cables
• IC01G Connection btwn main & dashboard cables
• IC01H Connection btwn main & dashboard cables
• IC01L Connection btwn main & dashboard cables
• IC01M Connection btwn main & dashboard cables
• IC01R Connection btwn main & dashboard cables
• IC01T Connection btwn main & dashboard cables
• IC01Z Interconnection btwn main & dashboard cables
• IC02A Connection btwn main & engine cables
• IC02B Connection btwn main & engine cables
• IC04 Connection between main cables and A.B.S. cables
• IC22B Connection between dashboard cables and air bag/p-re-tensioner cables
• IC42 Connection between door cables and fuel gauge cable

Earth key

• MP23 Earth on dashboard, right
• MO00 Battery earth
• MO01 Battery earth

N.D. Ultrasound welding taped in cable loom
