55 Electrical equipmentVehicle interior lights - Ideogram lights

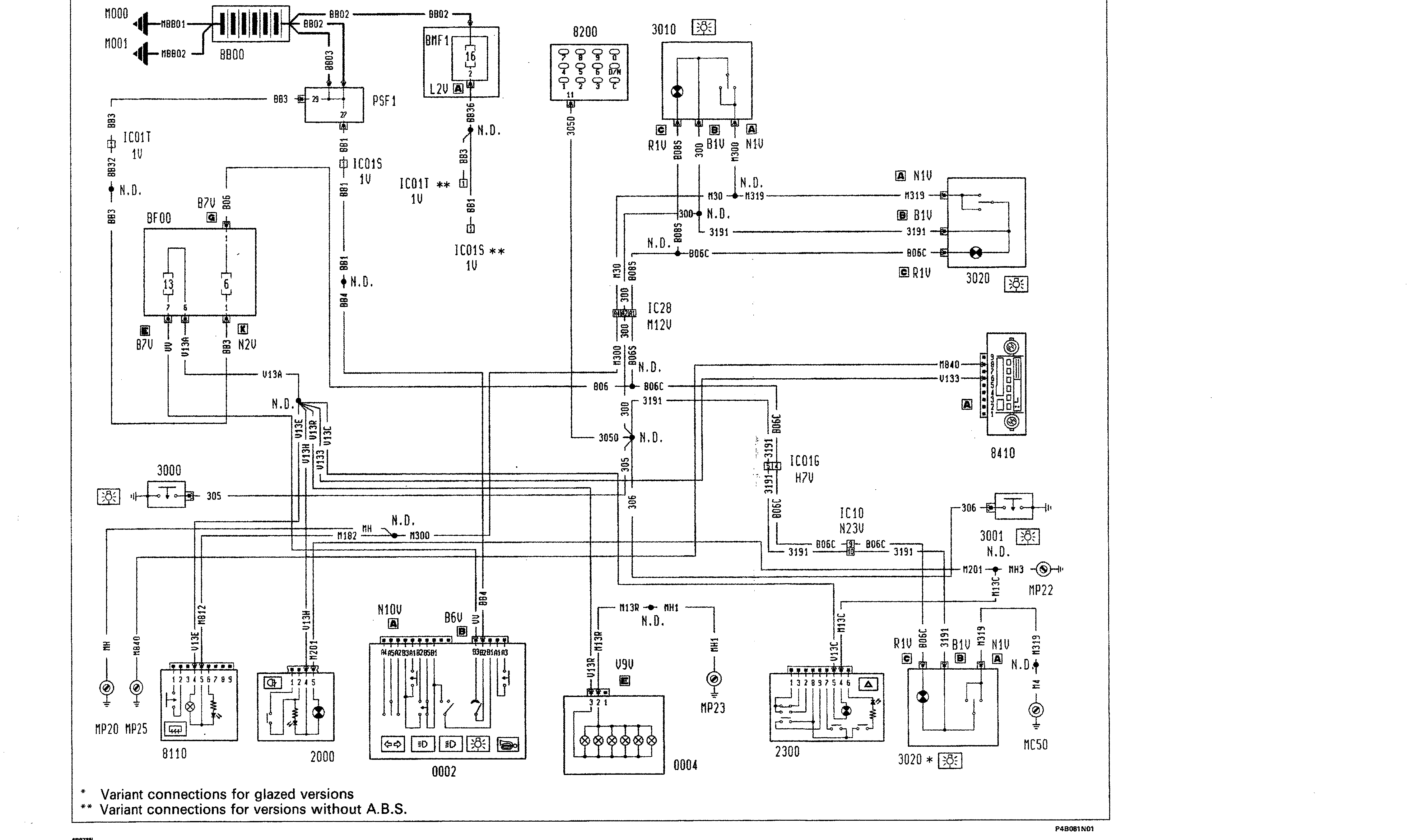

Vehicle interior lights - Ideogram lights
* Variant connections for glazed versions
** Variant connections for versions without A.B.S.
