Panel connection (1905 D - 1905 Turbo D)

Make

Fiat

Model

Scudo Factory Service Manual

Year

1996–2006

Section

Wiring diagrams › Panel connection (1905 D - 1905 Turbo D)

55 Electrical equipmentPanel connection (1905 D - 1905 Turbo D)

Panel connection (1905 D - 1905 Turbo D)

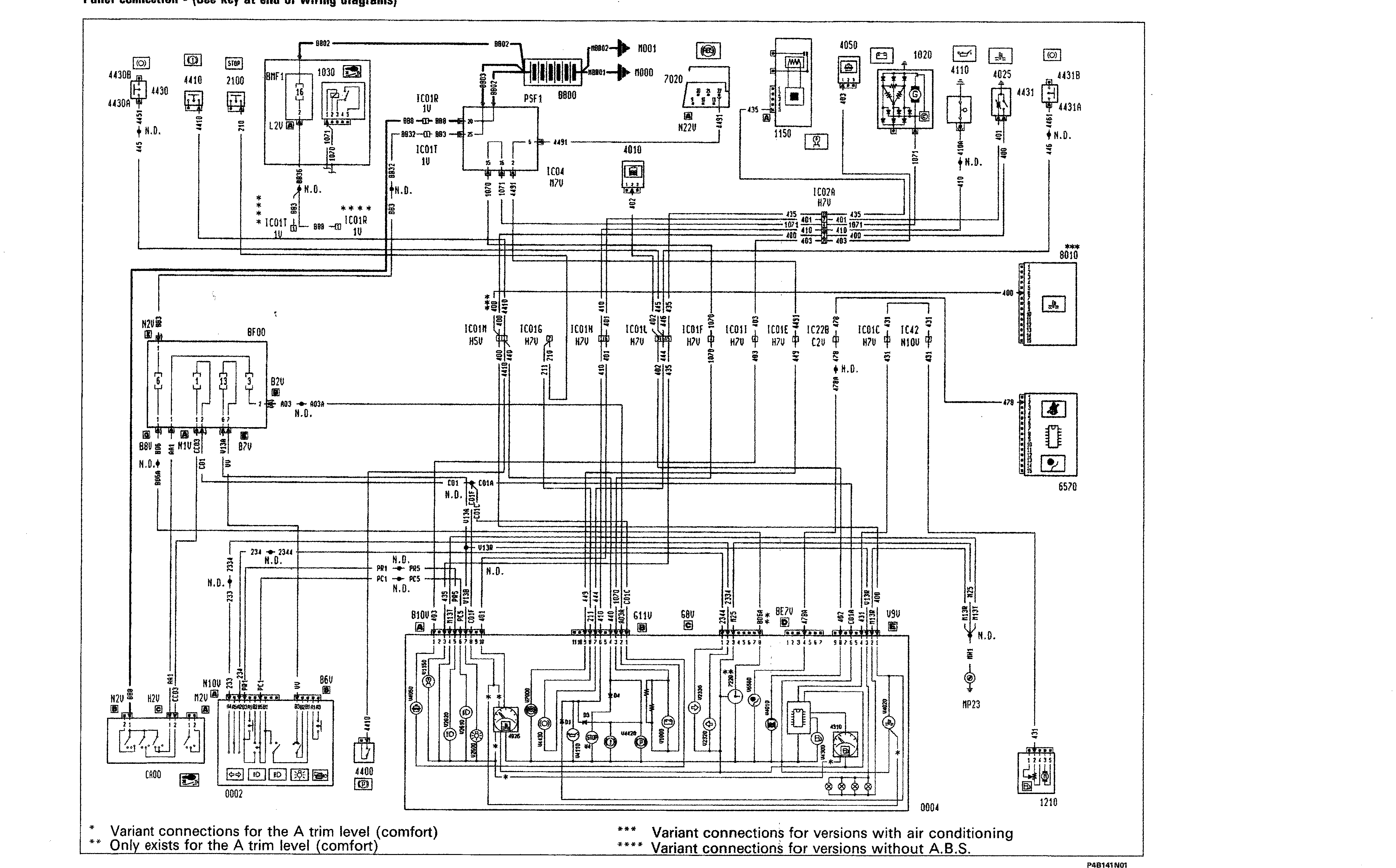

Panel connection - (See key at end of wiring diagrams)

View full sizeFit to page

* Variant connections for the A trim level (comfort)
** Only exists for the A trim level (comfort)
*** Variant connections for versions with air conditioning
**** Variant connections for versions without A.B.S.
