Pre-tensioners
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Wiring diagrams › Pre-tensioners
‹ Prev Location of components on vehicle - Air-bag - Pre-tensionersNext › Location of components on vehicle - Pre-tensioners
55 Electrical equipmentPre-tensioners

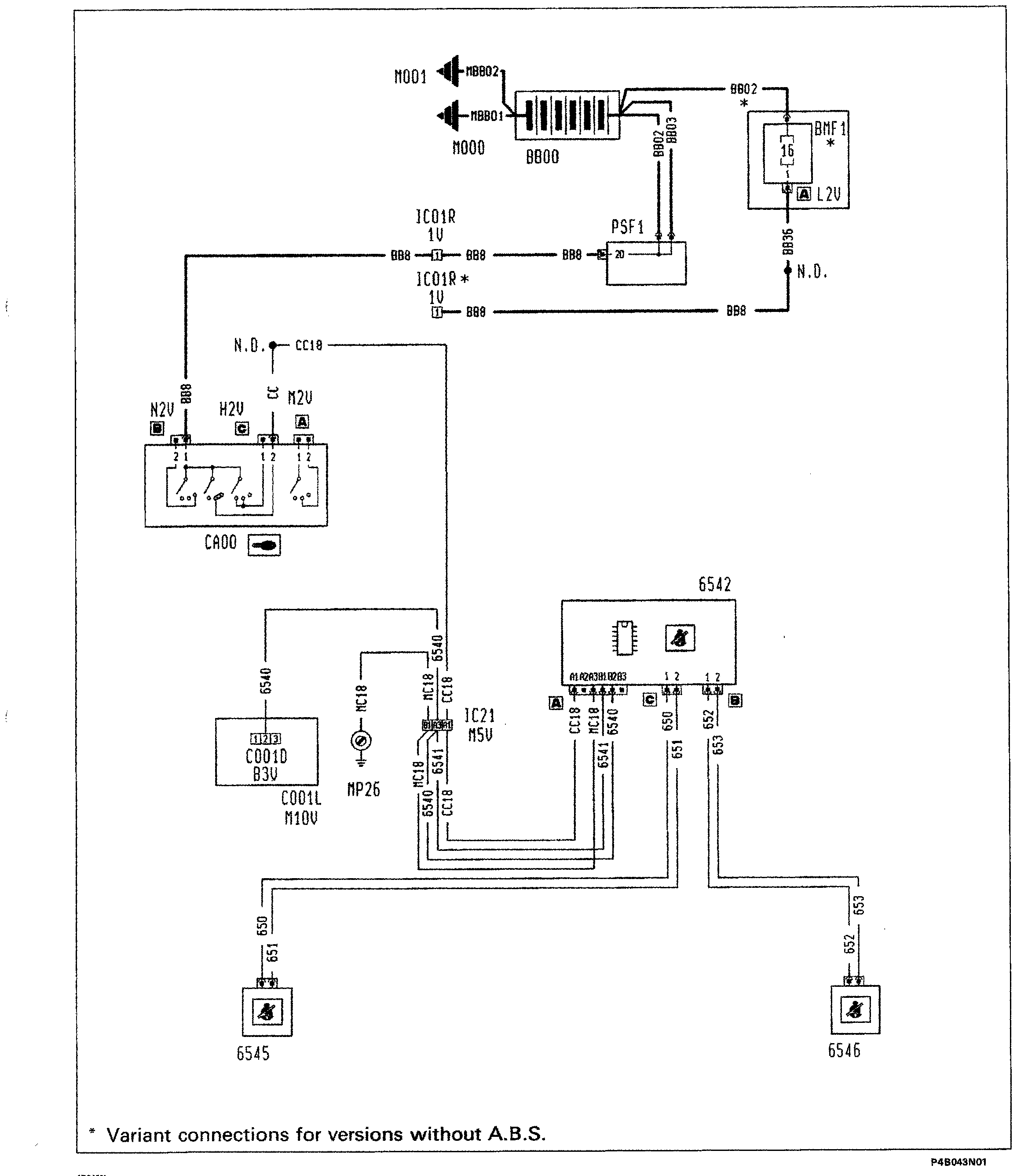

Pre-tensioners – diagram from the 55 Electrical equipment chapter of the Fiat Scudo Factory Service Manual (1996-2006) factory manual.
Pre-tensioners
* Variant connections for versions without A.B.S.
